LPD-0.45/6-8S 0.45-6Ghz 8 Way Power Divider Combiner

Type No:LPD-0.45/6-8S                                               Frequency:0.45-6Ghz

Insertion Loss:2.5dB                                                      Amplitude Balance:±0.6dB

Phase Balance: ±8                                                          VSWR: ≤1.8 : 1

Isolation:≥18dB                                                              Power:2W

Connecter:SMA-F


Product Detail

Product Tags

Leader-mw Introduction to 450-6000mhz 8 way power divider

Stability is another crucial aspect of this product. LEADER Microwave has incorporated advanced technology to ensure that the power divider operates with optimal stability. This reliability is essential in critical applications where any signal loss or disruption can have significant consequences.

Durability is a hallmark of LEADER Microwave products, and this power divider is no exception. It is built to withstand the demanding environments often found in mobile communication and ultra-wideband fields. This ensures that it can withstand the rigors of constant usage without compromising its performance.

The LEADER MICROWAVE Wide frequency Range Microstrip Power Divider also stands out for its high accuracy. Precision is crucial when it comes to power distribution, and this product has been engineered to deliver exceptional accuracy consistently. This makes it a reliable choice for mission-critical applications where precision is paramount.

Leader-mw Specification

Type  No:LPD-0.45/6-8S Power Divider/combiner

Frequency Range: 450-6000MHz
Insertion Loss: . ≤2.5dB
Amplitude Balance:   ≤±0.5dB
Phase Balance: ≤±5deg
VSWR:  ≤1.6 : 1(IN) 1.3:1(OUT)
Isolation: ≥18dB
Impedance: . 50 OHMS
Port Connectors: SMA-Female
Power Handling: 20Watt
Operating Temperature:  -30℃to+60℃
Power handling reverse 2Watt



Remarks:

1、Not Include Theoretical loss 9 db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.15kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

0.45-6

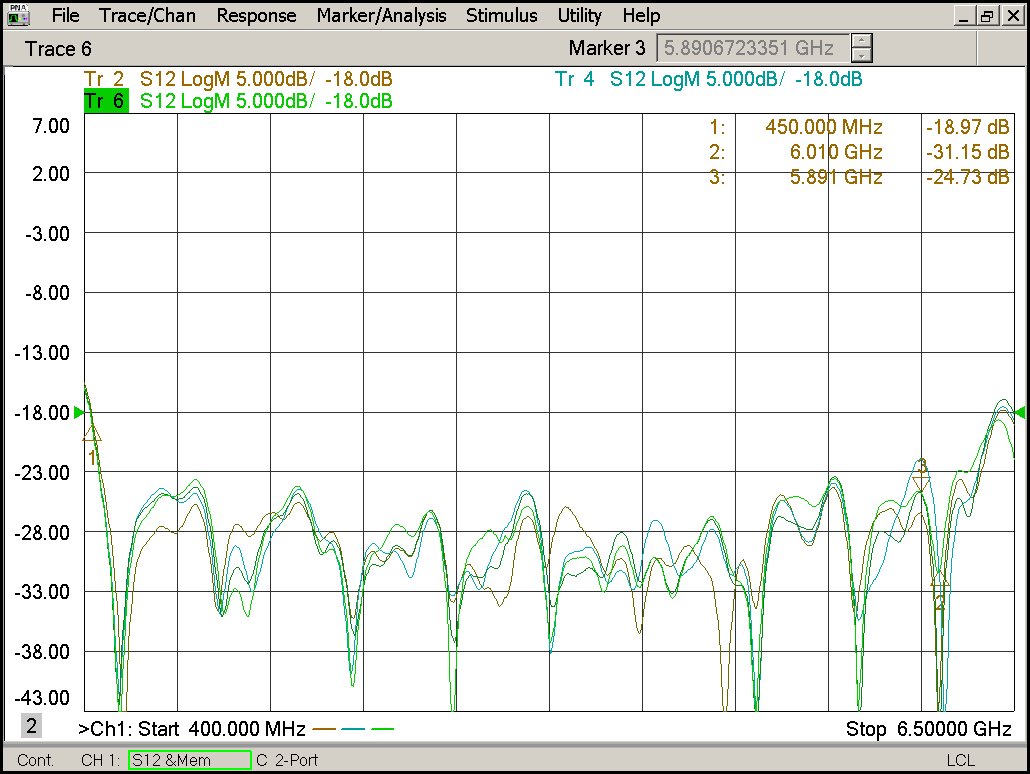

Leader-mw Test Data
0.45-6-1
0.45-6-2
Leader-mw Delivery
DELIVERY
Leader-mw Application
APLICATION
YINGYONG
