LDC-0.5/3-90s 0.5-3Ghz 90° RF Hybrid Coupler

Type:LDC-0.5/3-90s

Frequency:500-3000Mhz

Insertion Loss:1.0dB

Amplitude Balance:±0.6dB

Phase Balance: ±5

VSWR: ≤1.25: 1

Isolation:≥20dB

Connecter:SMA-F

Power: 30W

Operating Temperature Range:-40˚C ~+85˚C

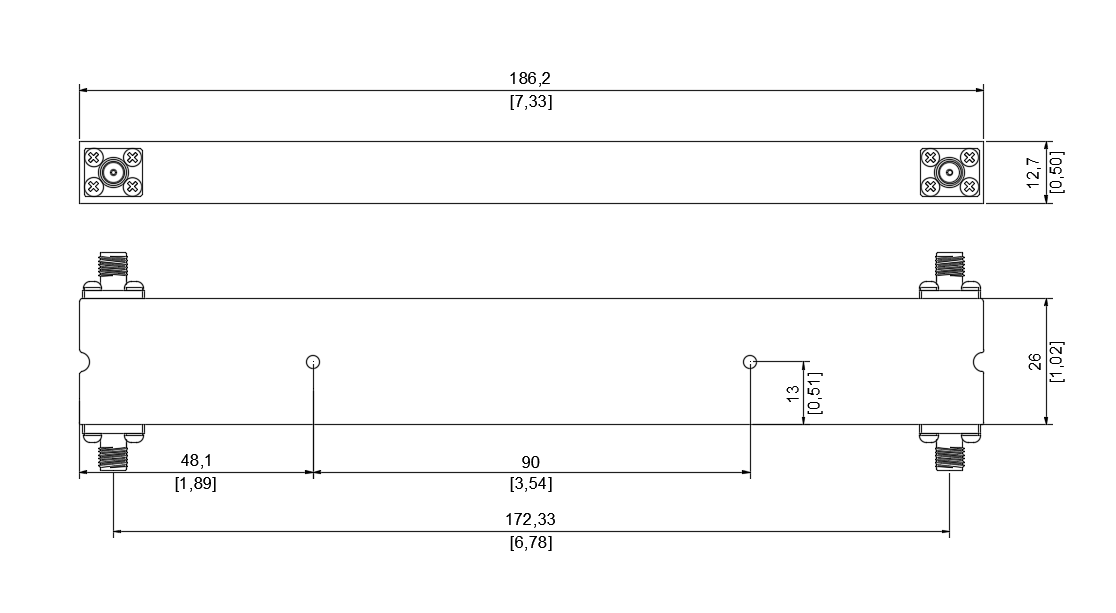

Outline:Unit: mm


Product Detail

Product Tags

Leader-mw Introduction to 0.5-3Ghz 90° RF Hybrid Coupler

LEADER MICROWAVE TECH.,(LEADER-MW) 90° Hybrid Coupler, a versatile four-port device designed to efficiently distribute power and enhance power amplifier performance. This innovative coupler is engineered to evenly distribute power from any port to the other two ports without transferring power to the fourth port, making it an ideal solution for a variety of applications.

90° hybrid couplers are essential when a single device or pair of devices cannot meet the required output power. By utilizing a hybrid coupler circuit, two or more power amplifiers can be combined to achieve greater power output, thereby improving overall performance. This is particularly advantageous in situations where direct parallel operation of multiple devices is not feasible due to uneven current distribution.

The compact and rugged design of the 90° hybrid coupler makes it suitable for integration into a variety of systems, including telecommunications, radar systems, RF and microwave applications, and more. Its high-quality construction ensures reliable and consistent performance, making it a reliable choice for demanding industrial and commercial environments.

Leader-mw Specification

The 90° hybrid coupler is a four-port device whose function is to equally distribute the power fed from any port to the other two ports without transmitting the power to the fourth port.

When the required output is larger than what can be obtained by a single device or a pair of devices, a "hybrid coupler" circuit can be used to combine two or more power amplifiers. Direct parallel operation of several devices is not satisfactory because the current is not evenly distributed among these devices.

LDC-0.5/3-90S    90°Hybrid cpouoler   Specifications
Frequency Range: 500~3000MHz
Insertion Loss: ≤.1.0dB
Amplitude Balance: ≤±0.6dB
Phase Balance: ≤±5 deg
VSWR: ≤ 1.25: 1
Isolation: ≥ 20dB
Impedance: 50 OHMS
Port Connectors: SMA-Female
Power Rating as Divider:: 30 Watt
Surface Color: Black
Operating Temperature Range: -40 ˚C-- +85 ˚C

Remarks:

1、Not Include Theoretical loss 3 db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.15kg

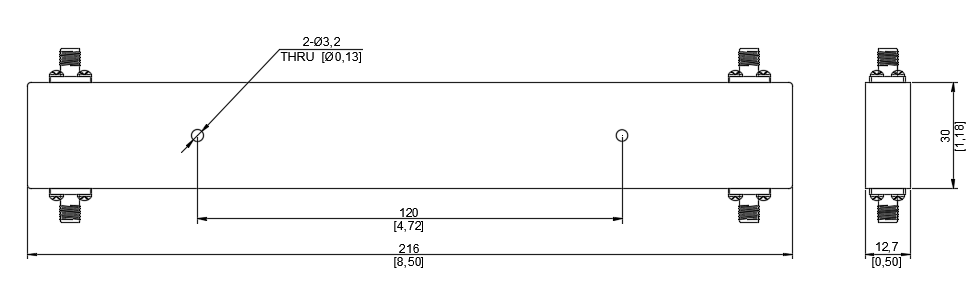

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

0.5-3-90
Leader-mw Test Data
0.5-3-1
0.5-3-2
0.5-3-3
0.5-3-4
0.5-3-5
0.5-3-6
