LPD-0.5/6-12S 0.5-6 Ghz 12Way Power Divider
| Leader-mw | Introduction to 12 Way power splitter |
Leader Microwave Technology Co., Ltd. is a leading supplier of high quality, reliable microwave and millimeter wave products. We attach great importance to customer satisfaction and are committed to providing innovative solutions to meet the diverse needs of our customers.
One of our flagship products is the 50 Ohm 12-way power splitter/combiner. Designed with precision and expertise, these power dividers/combiners offer superior performance and versatility. They are suitable for a wide range of applications including telecommunications, radar systems, satellite communications and more.
Ultra-Wideband: Our 50 Ohm 12-way power divider/combiner is designed to operate over an ultra-wide frequency range, ensuring compatibility with a variety of systems. This enables seamless integration and improves overall performance.
| Leader-mw | Specification |
Type No: LPD-0.5/6-12S Power splitter Specifications
| Frequency Range: | 500-6000MHz |
| Insertion Loss: | ≤4.5dB |
| Amplitude Balance: | ≤±1dB |
| Phase Balance: | ≤±12deg |
| VSWR: | ≤1.75: 1 |
| Isolation: | ≥15dB |
| Impedance: | 50 OHMS |
| Power Handling: | 10Watt |
| Port Connectors: | SMA-Female |
| Operating Temperature: | -30℃to+60℃ |
Remarks:
1、Not Include Theoretical loss 10.79db 2.Power rating is for load vswr better than 1.20:1
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | Aluminum |
| Connector | ternary alloy three-partalloy |
| Female Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 0.3kg |
Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA-Female

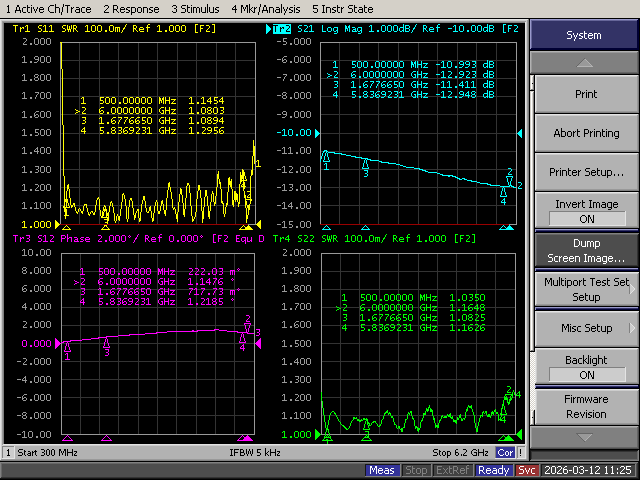

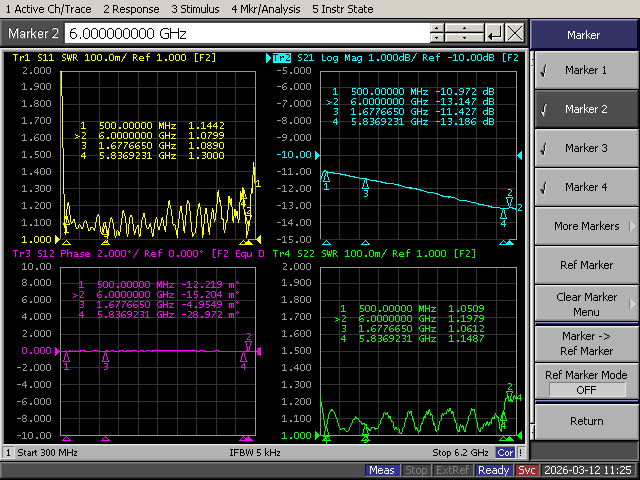

| Leader-mw | Test Data |
