ANT0223 1200Mhz Flat Panel Array Antenna

Type:ANT0223

Frequency:900MHz~1200Mhz

Gain, Typ (dBi):≥12 Polarization:linear polarization

3dB Beamwidth, E-Plane, Min (Deg.):E_3dB:≥203dB Beamwidth, H-Plane, Min (Deg.):H_3dB:≥45

VSWR: ≤2.0: 1

Impedance :50(Ohm)

Connecter:N-50K

Outline: 540×360×85mm


Product Detail

Product Tags

Leader-mw Introduction to Broadband Couplers

Chengdu leader microwave TECH.,(leader-mw) product ANT0223 900MHz~1200MHz flat panel array antenna. This high-performance antenna is designed for a wide frequency range, covering 900MHz to 1200MHz. The antenna features 12dB (typ) gain and low standing wave of 2.0:1 (max), making it ideal for a variety of applications in system integration and other areas.

One of the main features of the ANT0223 antenna is its ease of installation and versatile performance. The linearly polarized design allows for optimal signal reception and transmission, making it ideal for a variety of applications. The N-50K connector model ensures a safe and reliable connection for seamless integration into existing systems.

Whether you want to enhance the performance of your wireless communication system or need a reliable antenna for IoT devices, the ANT0223 900MHz ~ 1200MHz flat panel array antenna is the perfect solution. Its versatility and high-quality performance make it an excellent choice for a variety of applications.

The compact design of the flat panel array antenna allows it to be easily installed in both indoor and outdoor environments, providing deployment flexibility. Its durable construction ensures long-term reliability, making it a cost-effective solution for your communications needs

Leader-mw Specification
Frequency Range: 900MHz~1200MHz
Product Flat Panel Array Antenna
Gain, Typ: ≥12dBi
Polarization: Linear polarization
3dB Beamwidth, E-Plane, Min (Deg.): E_3dB:≥20
3dB Beamwidth, H-Plane, Min (Deg.): H_3dB:≥45
VSWR: ≤ 2.0: 1
Impedance: 50 OHMS
Port Connectors: N-50K
Operating Temperature Range: -40˚C-- +85 ˚C
weight 3kg
Surface Color: Green
Outline: 540×360×85mm



Remarks:

.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Item materials surface
back frame 304 stainless steel passivation
 back plate 304 stainless steel passivation
Horn base plate 5A06 rust-proof aluminum Color conductive oxidation
outer cover FRB radome
feeder pillar Red copper passivation
shore 5A06 rust-proof aluminum Color conductive oxidation
Rohs compliant
Weight 3kg
Packing Carton packing case (customizable)

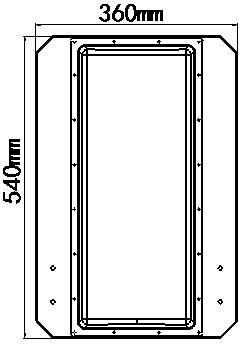

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: N-Female

0223-1
0223
Leader-mw Test Data
123
123
Leader-mw Advantages Of The Leader Microwave Technolog

(1) Professional design:

Specialized in providing plate array antenna for 5G communication, WiFi, satellite communication design.

(2) Own factory:

professional plate array antenna manufacturer

(3) Quality assurance:

Testing and inspection include antenna characteristic testing, radio frequency testing, mechanical strength testing, temperature and humidity testing, etc., to ensure that the antenna can work normally in various environments

(4) Customization service:

customized design according to customers' usage requirements
