LDC-2/4-10s 2-4G s band 10dB Directional Coupler

Type:LDC-2/4-10s

Frequency range:2-4Ghz

Nominal Coupling:10±1

Insertion Loss≤0.6dB

Directivity:23dB

VSWR:1.25

Power:50W(cw)

Connecter:SMA-F


Product Detail

Product Tags

Leader-mw Introduction to 2-4GhzCouplers

Chengdu Leader Microwave Technology has undoubtedly created excellent products with its years of experience and pursuit of excellence. The LDC-2/4-10s is designed to withstand rigorous conditions while delivering unparalleled performance. Whether you are operating in extreme temperatures or harsh environments, this coupler will continue to perform reliably.

In addition to its technical prowess, the LDC-2/4-10s also stands out aesthetically with its vibrant yellow finish. This eye-catching design not only adds style but also helps to easily identify and organize your setup.

In summary, Chengdu Leader Microwave Technology Co., Ltd.'s LDC-2/4-10s 2-4GHz 10dB directional coupler is the ultimate choice for any discerning professional looking for a high-performance microwave technology solution. With its high directivity, low insertion loss, durable construction and aesthetically pleasing design, this coupler is truly in a class of its own. Believe that Chengdu Leader Microwave Technology will provide you with the best innovation and quality. Order LDC-2/4-10s now to enhance your microwave technology experience.

Leader-mw Specification

Type No:LDC-2/4-10S directional coupler

No. Parameter Minimum Typical Maximum Units
1 Frequency range 2 4 GHz
2 Nominal Coupling 10 dB
3 Coupling Accuracy 10±0.8 dB
4 Coupling Sensitivity to Frequency ±1 dB
5 Insertion Loss 1.6 dB
6 Directivity 23 30 dB
7 VSWR 0.6 -
8 Power 50 W
9 Operating Temperature Range -45 +85 ˚C
10 Impedance - 50 - Ω



Remarks:

1.Include Theoretical loss 0.46db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.10kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

2-4-10S

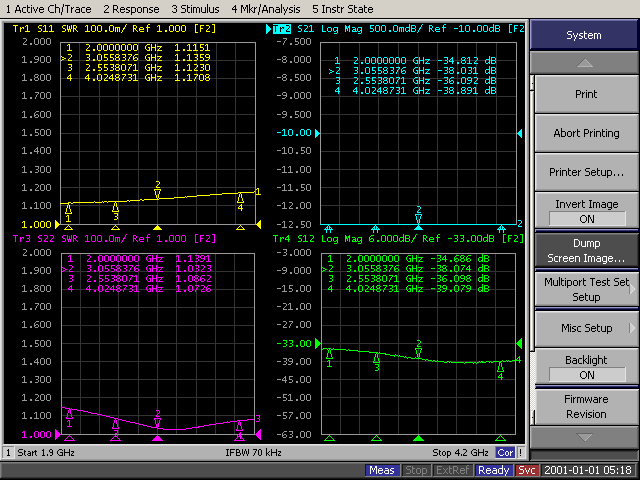

Leader-mw Test Data
2-4-10-48
2-4-10-48-1
2-4-10-48-2
2-4-10-49-1
