LPD-2/40-2S 2 way microstrip line power divider



Type No:LPD-2/40-2S                                             Frequency:2-40Ghz

Insertion Loss:1.8dB                                                 Amplitude Balance:±0.4dB

Phase Balance: ±4                                                      VSWR: 1.6

Isolation:18dB                                                             Connecter2.92-F


Product Detail

Product Tags

Leader-mw Introduction

At Chengdu Leader Microwave Tech, we are committed to delivering superior quality products that meet global standards. Our 0.5-40G 2-way power divider is meticulously crafted using advanced manufacturing techniques and high-quality materials. The result is a durable and long-lasting product that boasts exceptional performance even in demanding environments.

This power divider is equipped with state-of-the-art features, including low insertion loss and excellent isolation. Its advanced design ensures signal integrity and minimizes interference, making it an ideal choice for critical communication systems. Additionally, this power divider features a compact and lightweight design, allowing for easy integration into existing setups.

Leader-mw Specification

Type No:LPD-2/40-2S 2 way microstrip line power divider

Frequency Range: 2000~40000MHz
Insertion Loss: ≤1.8dB
Amplitude Balance: ≤±0.4dB
Phase Balance: ≤±4 deg
VSWR: ≤1.60 : 1
Isolation: ≥16dB
Impedance: 50 OHMS
Port Connectors : 2.92-Female
Power Handling: 20 Watt





Remarks:

1、Not Include Theoretical loss 3db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.15kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: 2.92-Female

2-40-2S

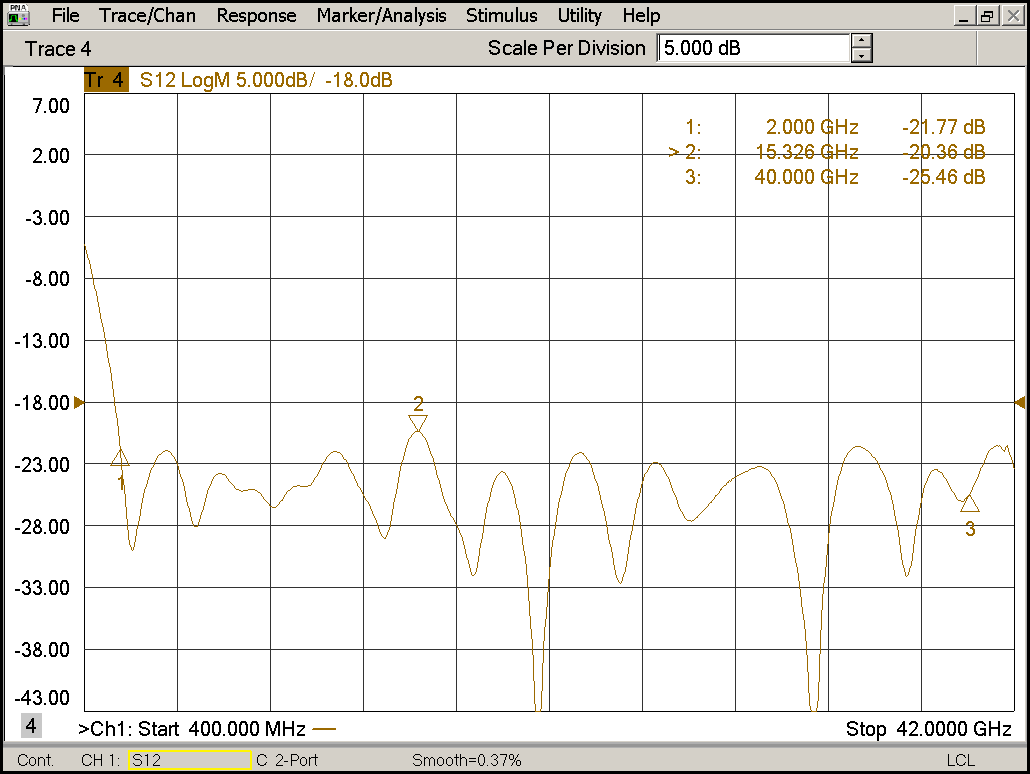

Leader-mw Test Data
3.1
3.2
