LPD-24/28-16S 24-28Ghz 16Way Power Divider



Type;LPD-24/28-16S                                                      Frequency:24-28Ghz

Insertion Loss:3.8dB                                                     Amplitude Balance:±0.5dB

Phase Balance: ±6                                                           VSWR: ≤1.6

Isolation:≥16dB                                                              Connecter:SMA-F


Product Detail

Product Tags

Leader-mw Specification

Designed for versatility and reliability, Leader microwave Tech.,LPD-24/28-16S offers a frequency range of 24-28GHz, making it highly compatible with a variety of communication systems operating within this frequency range. This versatility ensures that the power divider can be seamlessly integrated into existing setups without the need for extensive modifications or additional equipment.

In addition, LPD-24/28-16S also has excellent signal quality and low insertion loss, ensuring that the transmitted data remains accurate and reliable throughout the communication process. The device is also built using high-quality materials and advanced manufacturing techniques to ensure superior durability and long-lasting performance.

Leader-mw Specification

LPD-24/28-16S Power Divider Specifications

Frequency Range: 24000-28000MHz
Insertion Loss: ≤3.8dB
Amplitude Balance: ≤±0.5dB
Phase Balance: ≤±6deg
VSWR: ≤1.6: 1
Isolation: ≥16dB
Impedance: 50 OHMS
Power Handling: 10Watt
Power handling reverse : 10Watt
Port Connectors: SMA-Female
Operating Temperature: -30℃to+60℃



Remarks:

1、Not Include Theoretical loss 12db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.4kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

24-28-16S

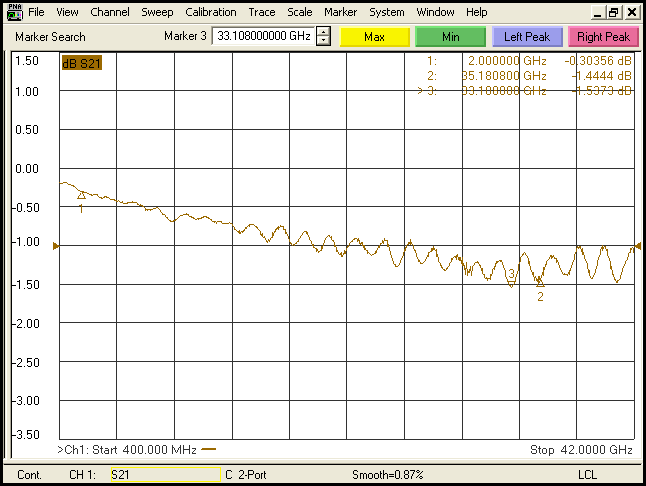

Leader-mw Test Data
