3.5-4.2Ghz 16 way power divider with 100w power LPD-3.5/4.2-16S-100W

Type:LPD-3.5/4.2-16S                                                 Frequency:3.5-4.2Ghz

Insertion Loss:0.8dB                                                Amplitude Balance:±0.3dB

Phase Balance: ±5                                                    VSWR: ≤1.5(IN) 1.3(OUT)

Isolation:≥18dB                                                          Connecter:SMA-F

Power:100w CW


Product Detail

Product Tags

Leader-mw Introduction to 16 Way power divider splitter

Leader Microwave 16-way power divider is an essential component in microwave and wireless communication systems, particularly in antenna array feeding networks. This device splits a single input signal into sixteen equal parts, allowing for the distribution of power to multiple antenna elements or other devices. With a high average power rating of 100W, this power divider can handle substantial power levels without degrading performance, making it suitable for applications requiring robust and reliable signal distribution.

The design typically incorporates advanced materials and construction techniques to ensure low loss and high isolation between output ports. This minimizes signal interference and maximizes efficiency. In addition, such a power divider often features impedance matching to ensure compatibility with standard transmission line impedances (such as 50Ω or 75Ω), which is crucial for minimizing reflections and maintaining signal integrity.

In summary, a 16-way power divider with a high average power rating is a critical component for distributing signals effectively in high-power, multi-element antenna systems. Its ability to handle significant power levels while maintaining signal quality makes it ideal for various applications, including telecommunications, broadcasting, and radar systems.

Leader-mw Specification

Type No: LPD-3.5/4.2-16S Power splitter Specifications

Frequency Range: 3500-4200MHz
Insertion Loss: ≤0.8dB
Amplitude Balance: ≤±0.3dB
Phase Balance: ≤±5deg
VSWR: ≤1.3: 1(out),1.5: 1(in)
Isolation: ≥18dB
Impedance: 50 OHMS
Power Handling: 100Watt
Port Connectors: SMA-Female
Operating Temperature: -30℃to+60℃



Remarks:

1、Not Include Theoretical loss 12db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.3kg

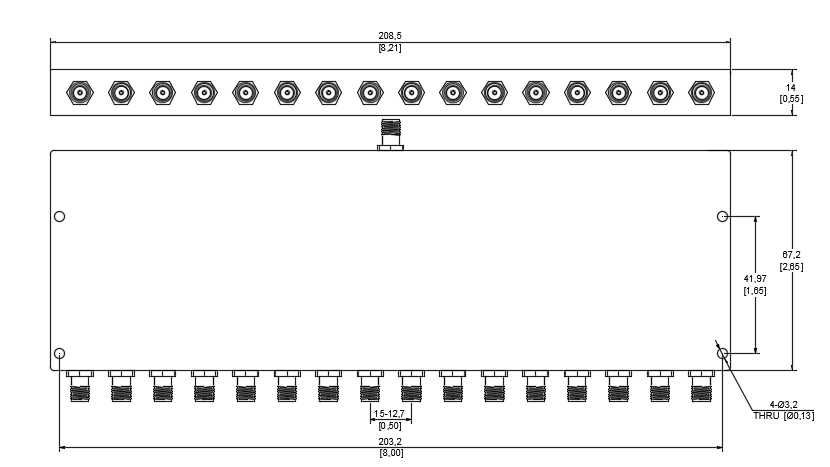

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

16WAY
Leader-mw Test Data
1.1
1.2
