45G High Pass Cavity Filter

TYPE:LBF-27500/40500-2

Frequency Range 27500-40500MHz

Insertion Loss ≤1.2dB

Ripple ≤1.0dB@in 325MHz span in the range 27500-40500MHz

VSWR ≤2.0:1

Rejection ≥20dB@2100-3800MHz

≥65dB@6000-17000Mhz

≥30dB@17700-24500Mhz

Port Connectors 2.92-K


Product Detail

Product Tags

Leader-mw Introduction to 45ghz filter

•Rf high pass filter allow you to use a common distributor system for all mobile communication applications in the broad frequency range.

•Apply to TD-SCDMA/ WCDMA/ EVDO/ GSM/ DCS/ CDMA/ WLAN/ CMMB/ colony communication system

Typical cases: Metro system, government office buildings, gyms and stations and Information distribution system.

•In the circuit and high frequency electronic system has better frequency selective filtering effect, high pass filter can suppress useless out of band signals and noise.In the aviation, aerospace, radar, communication, electronic countermeasure, radio and television and various applications in electronic test equipment

•Meet various demands of network systems with the Ultra-wideband design.

•Rf high pass filter Suitable for the coverage e indoor system of cellular mobile communication

Leader-mw specification

Part Number LBF-27500/40500-2
Frequency: 27500-40500MHz
Insertion Loss (dB) ≤1.2dB
VSWR 2.0
Rejection ≥20dB@2100-3800MHz ≥65dB@6000-17000Mhz ≥30dB@17700-24500Mhz
Connector type 2.92-K
Group delay fluctuation In 325Mhz span±0.8ns In 1500Mhz span±1ns
Power Handling 5W
Surface Finish BLACK
Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.15kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: 2.92-Female

45G

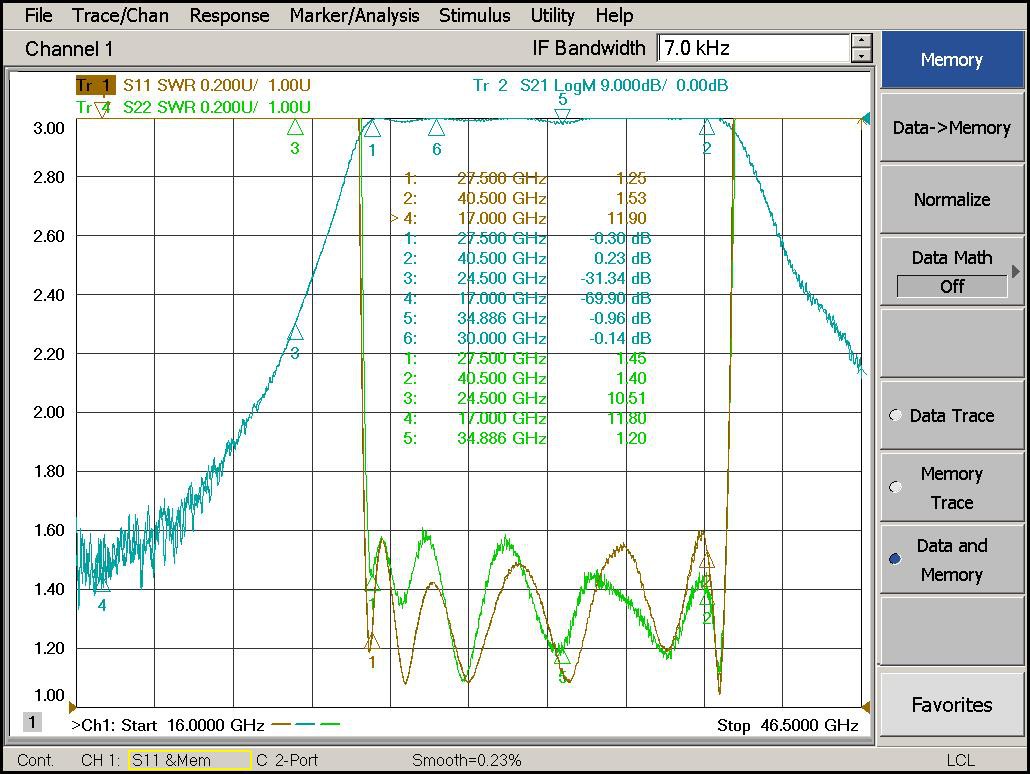

Leader-mw Test data
45G-2
45G-1
