LDC-4/12-30N-600W High Power Directional Coupler

Type:LDC-4/12-30N-600W

Frequency range:4-12Ghz

Nominal Coupling:30±1.5dB

Insertion Loss≤0.3dB

Directivity:12dB

VSWR:1.35

Power:600W

Connecter:N-F


Product Detail

Product Tags

Leader-mw Introduction to 600W High power coupler

Introducing chengdu leader microwave Tech.,(leader-mw) latest product, the 600w high power directional coupler, designed to provide unparalleled performance in the 4-12Ghz frequency range. The high power handling capabilities of this cutting-edge coupler make it ideal for demanding applications in the telecommunications, aerospace and defense industries.

The main feature of this directional coupler is its high power handling capabilities, allowing it to effectively manage power levels up to 600w while maintaining excellent performance. This rugged design ensures reliable and consistent operation even in the most challenging environments.

At the heart of this directional coupler are its precision engineering and quality components. Manufactured to the highest standards, this coupler utilizes advanced technology and innovation to deliver unparalleled performance and durability. This coupler is ruggedly constructed to withstand the rigors of daily use, making it a reliable and long-lasting solution for your high-power coupling needs.

Leader-mw Specification of high power Couplers

Type No:LDC-4/12-30N-600w high power coupler

No. Parameter Minimum Typical Maximum Units
1 Frequency range 4 12 GHz
2 Nominal Coupling 30 dB
3 Coupling Accuracy 30±1.5 dB
4 Coupling Sensitivity to Frequency ±1.0 dB
5 Insertion Loss 0.3 dB
6 Directivity 12 22 dB
7 VSWR 1.35 -
8 Power 600 W
9 Operating Temperature Range -45 +85 ˚C
10 Impedance - 50 - Ω



Remarks:

1.Insertion loss include Theoretical loss 0.004dB  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.3kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: N-Female

600W

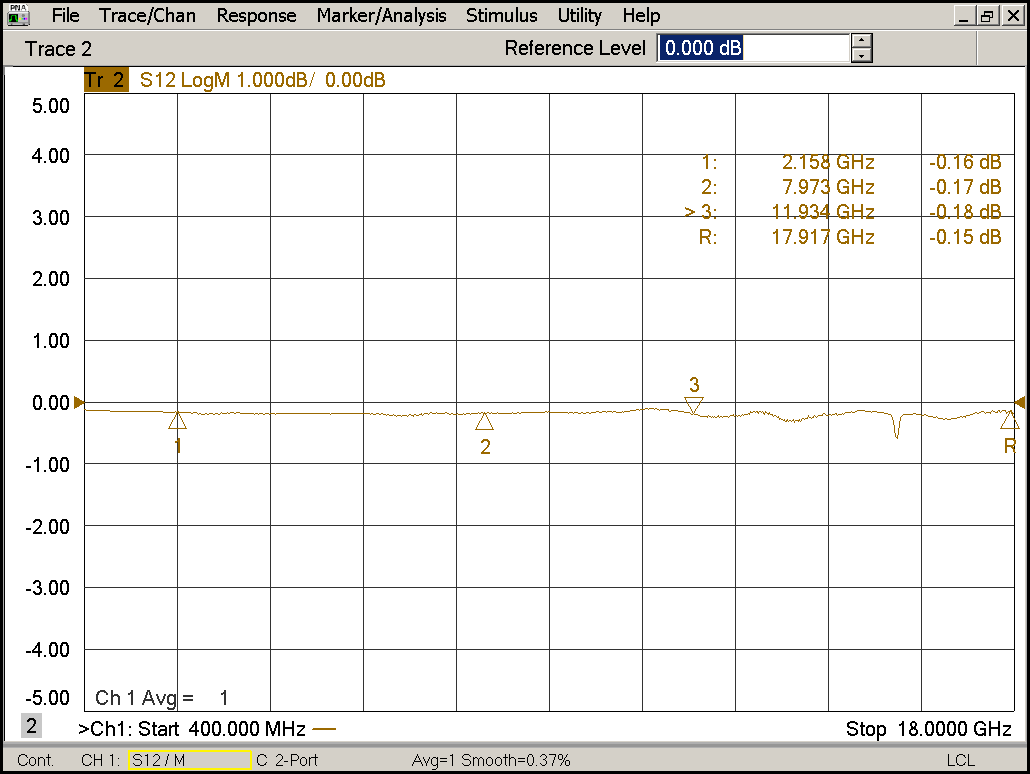

Leader-mw Test Data
1.1
1.2
1.3
