LPD-6/18-16S 6-18Ghz 16 way power Divider

Type:LPD-6/18-16S                                              Frequency:6-18Ghz

Insertion Loss:5.8dB                                            Amplitude Balance:±1dB

Phase Balance: ±5                                                 VSWR: ≤1.65

Isolation:≥15dB                                                    Connecter:SMA-F


Product Detail

Product Tags

Leader-mw Introduction to 16 Way power divider

Leader microave Tech., proud to offer products that not only meet but exceed industry standards for power dividers/combiner/splitter. Our commitment to continuous innovation and technological excellence allows us to provide our customers with the cutting-edge solutions they need to stay ahead of the competition.

In summary, the importance of high-performance power dividers in the rapidly growing wireless communications industry cannot be overstated. Our microwave and millimeter wave broadband power dividers are designed to meet the needs of military and civilian applications, including radar, navigation, satellite communications, electronic countermeasures and 5G networks. With their superior performance, rugged construction and wide operating frequency range, our power dividers ensure seamless communication and help our customers achieve unparalleled success in their respective industries.

Leader-mw Specification

LPD--6/18-16S Power Divider/combiner/splitter Specifications

Frequency Range: 6000-18000MHz
Insertion Loss: ≤5.8dB
Amplitude Balance: ≤±1dB
Phase Balance: ≤±5deg
VSWR: ≤1.65 : 1
Isolation: ≥15dB
Impedance: 50 OHMS
Power Handling: 10Watt
Power handling reverse : 10Watt
Port Connectors: SMA-Female
Operating Temperature: -30℃to+60℃



Remarks:

1、Not Include Theoretical loss 12db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.4kg

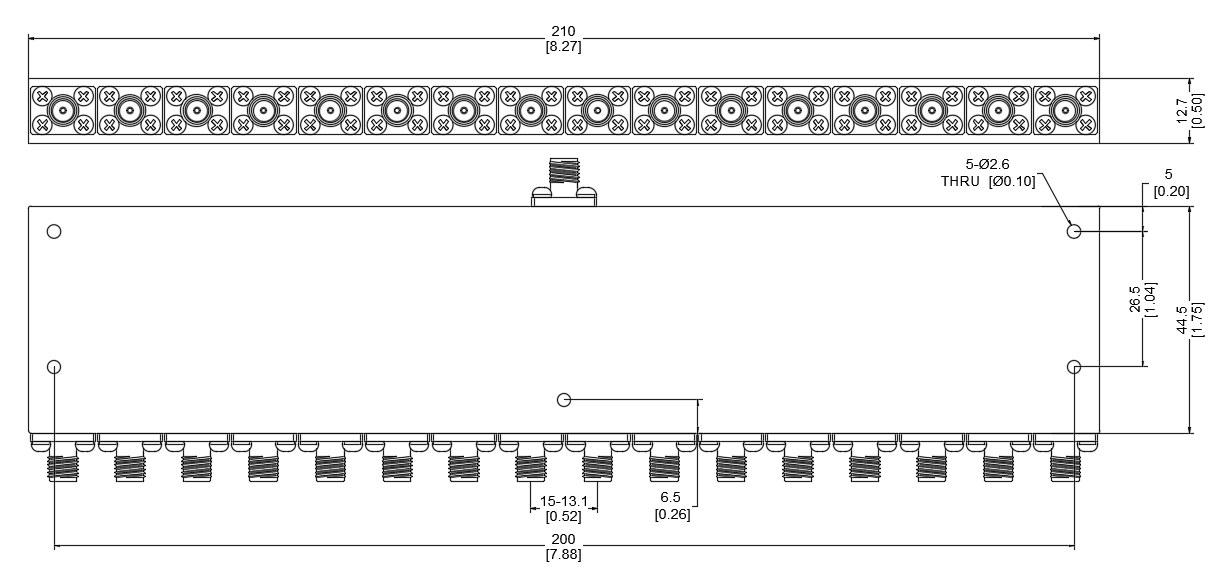

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

6-18-16S
Leader-mw Test Data

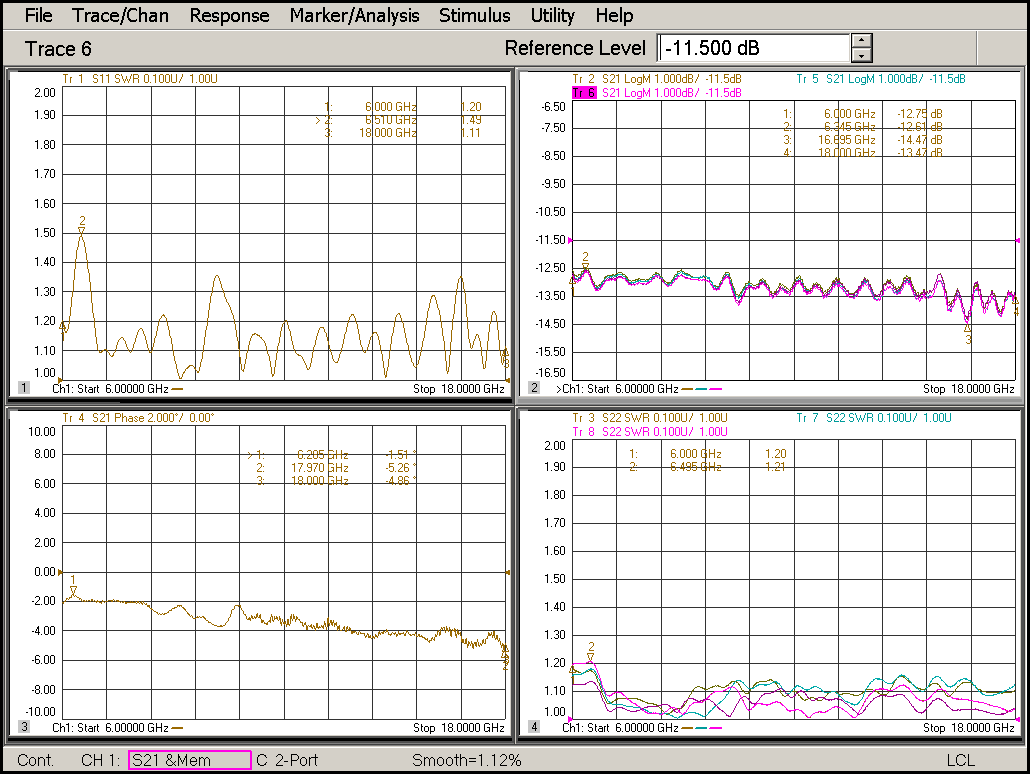

6-18-16-3

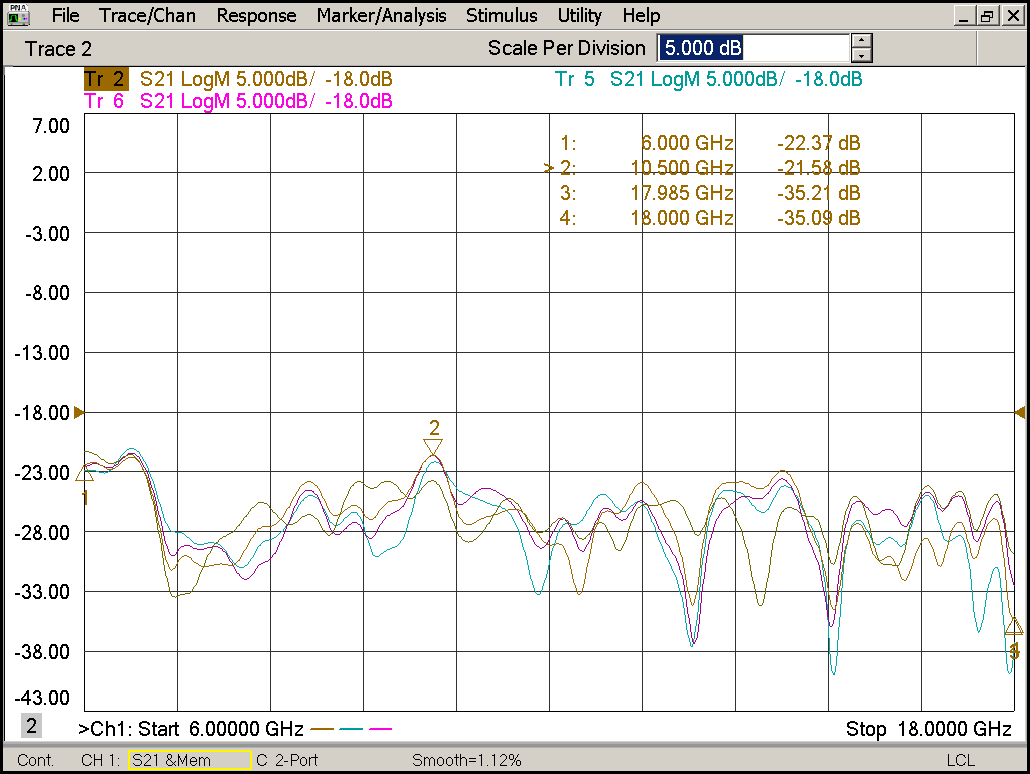

6-18-16-2
6-18-16-1
