LPD-6/26.5-4S Broadband 4 Way Power Divider Splitter

Frequency range: 6-26.5Ghz

Type NO:LPD-6/26.5-4S

Insertion Loss:1.9dB

Amplitude Balance:±0.5dB

Phase Balance: ±5

VSWR: 1.5

Isolation:18dB

Connecter:SMA-F

Temperature: -32℃to+85℃


Product Detail

Product Tags

Leader-mw Introduction to Broadband splitter

At Chengdu Lida Microwave Technology Co., Ltd., we are very proud of our products. We are committed to providing our customers with the highest quality microwave components with excellent performance, durability and reliability. We continually invest in research and development to stay at the forefront of technological advancements, ensuring our customers receive cutting-edge solutions that meet their specific needs.

We understand the importance of excellent customer service. Our team of knowledgeable and experienced professionals is ready to assist our customers, providing technical support, guidance and customized solutions to meet their unique needs.

Whether you are a customer in China or around the world, Chengdu Lida Microwave Technology Co., Ltd. is your trustworthy partner for all your passive microwave component needs. Contact us today to learn how our superior products and services can help take your microwave system's performance and reliability to new heights.

Leader-mw Specification

Type No:LPD-6/26.5-4SPower Divider Splitter Specifications

Frequency Range: 6000~26500MHz
Insertion Loss: ≤1.9dB
Amplitude Balance: ≤±0.5dB
Phase Balance: ≤±5deg
VSWR: ≤1.5 : 1
Isolation: ≥18dB
Impedance: 50 OHMS
Connectors : SMA-F
Operating Temperature: -32℃to+85℃
Power Handling: 20 Watt

Remarks:

1、Not Include Theoretical loss 6db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.15kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

6-26.5-4

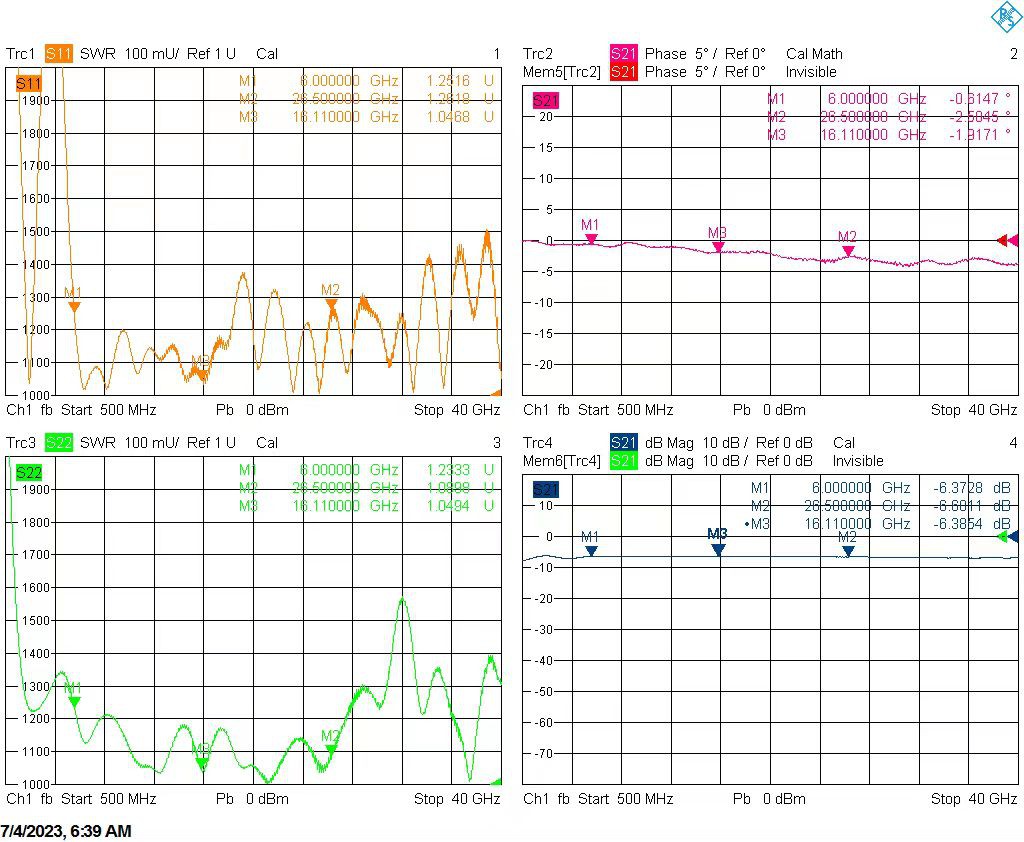

Leader-mw Test Data
6-26.5-4-23
6-26.5-4-1
Leader-mw Delivery
DELIVERY
Leader-mw Application
APLICATION
YINGYONG
