LPD-DC/40-4S DC-40Ghz 4-Way Resistance Power Divider Combiner

Frequency:DC-40Ghz

Type:LPD-DC/40-4S

Insertion Loss:14.8 dB(DC-26.5GHz) ≤16.8 dB(26.5-40GHz)

Amplitude Balance:±1dB

VSWR: ≤1.8 : 1 (DC-26.5GHz) ≤2.0 : 1 (DC-40GHz)

Power:1W

Connecter:2.92-F


Product Detail

Product Tags

Leader-mw Introduction to 40Ghz 4 way Resistive Power Dividers

Leader microwave Tech., the 40GHz resistive power divider. This power divider features UHF capabilities and is designed to provide superior performance and reliability for a variety of applications.

The 40GHz resistive power divider is designed to efficiently distribute average input power across multiple output channels. Its advanced resistor technology ensures ultra-low losses and minimal signal attenuation, making it ideal for high-quality power distribution in test systems and other demanding environments.

One of the outstanding features of this power divider is its ability to maintain good phase output, ensuring precise and accurate power distribution across all output channels. This feature is critical in a variety of industries, including telecommunications, aerospace, research laboratories, and many other industries where signal integrity is critical.

Designed to meet the needs of professionals looking for unparalleled performance, this power divider operates flawlessly at ultra-high frequencies up to 40GHz. It is engineered to provide the highest levels of performance and reliability, enabling efficient power distribution without compromising signal quality.

Leader-mw Specification

Type No:LPD-DC/40-4S DC-40Ghz 4-Way Resistance power divider combiner

Frequency Range: DC~40000MHz
Insertion Loss: . ≤14.8 dB(DC-26.5GHz) ≤16.8 dB(26.5-40GHz)
Amplitude Balance: ≤±1dB
VSWR: ≤1.8 : 1 (DC-26.5GHz) ≤2.0 : 1 (DC-40GHz)
Impedance: 50 OHMS
Port Connectors: 2.92-Female
Power Handling: 1 Watt
Operating Temperature: -32℃to+85℃
Surface Color:

Yellow conductive

Remarks:

1. Include Theoretical loss 12 db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.15kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

1700208873227
Leader-mw Test Data

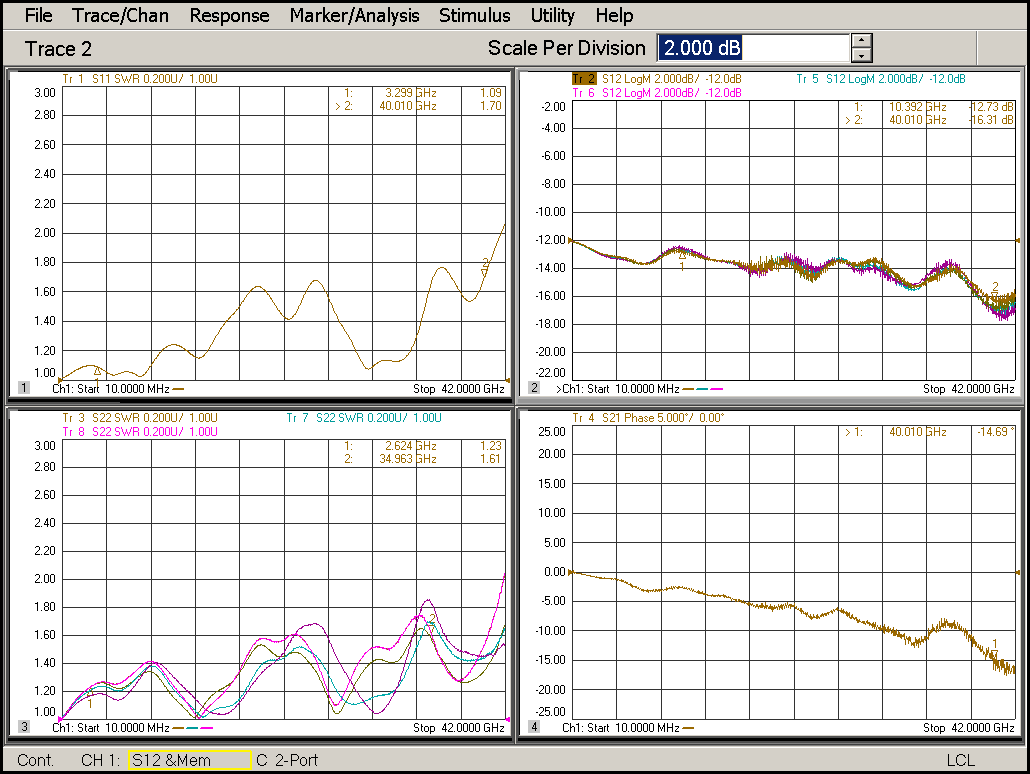

DC-40-3
