ANT0025PO Hand-held Log-periodic Antenna

Frequency:ANT0025PO

80MHz~8000MHz

Gain, Typ (dB):≥5

Polarization:Linear

3dB Beamwidth, E-Plane, Min (Deg.):E_3dB:≥60

3dB Beamwidth,E-Plane, Max (Deg.):H_3dB:≥100

VSWR: ≤2.0: 1 Impedance, (Ohm):50

Connecter:SMA-50KPower:300W

Operating Temperature Range:-40˚C ~+85˚C

Outline:Unit: 360×190×26mm


Product Detail

Product Tags

Leader-mw Introduction to Hand-Held Log-Periodic Antenna

Introducing Cheng du leader mcrowave Tech.,(leader-mw) handheld log-periodic antenna, the ultimate solution for maximizing signal strength and coverage in the 800 to 9000 MHz frequency range. This compact yet powerful antenna is designed to support cellular, PCS, LTE, 4G LTE and Wifi/WiMAX frequency bands, making it an essential tool for anyone who needs reliable and high-performance wireless communications.

The handheld log-periodic antenna features 6 dBi flat gain, covering L/S/C/X with superior precision and accuracy, ensuring you stay connected no matter where you are. Unique to this antenna is its switchable vertical and horizontal log-periodic design, providing unprecedented flexibility and adaptability to meet your specific needs and environment.

Designed for durability and performance, the handheld log-periodic antenna features a high-strength, low-loss plastic molded radome ensuring it can withstand harsh conditions and continue to deliver outstanding performance. Its rotating pistol grip further adds to convenience and ease of use, allowing you to easily adjust the antenna to optimize signal reception.

Leader-mw Specification

ANT0025PO 80MHz~8000MHzLog-periodic Antenna
Frequency Range: 800-8000MHz
Gain, Typ: 5TYP.
Polarization: Linear
3dB Beamwidth, E-Plane, Min E_3dB:≥60Deg.
3dB Beamwidth, E-Plane, Min H_3dB:≥100Deg.
VSWR: ≤ 2.0: 1
Impedance: 50 OHMS
Port Connectors: SMA-Female
Operating Temperature Range: -40˚C-- +85 ˚C
Power Rating : 300 Watt
weight 0.5kg
Surface Color: Black
Outline Drawing

All Dimensions in mm

All Connectors:SMA-F

Remarks:

Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Item materials surface
Shell 1 Nylon
Shell 1 Nylon
vibrator Red cooper passivation
Rohs compliant
Weight 0.5kg
Packing Carton packing case (customizable)

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

0025PO

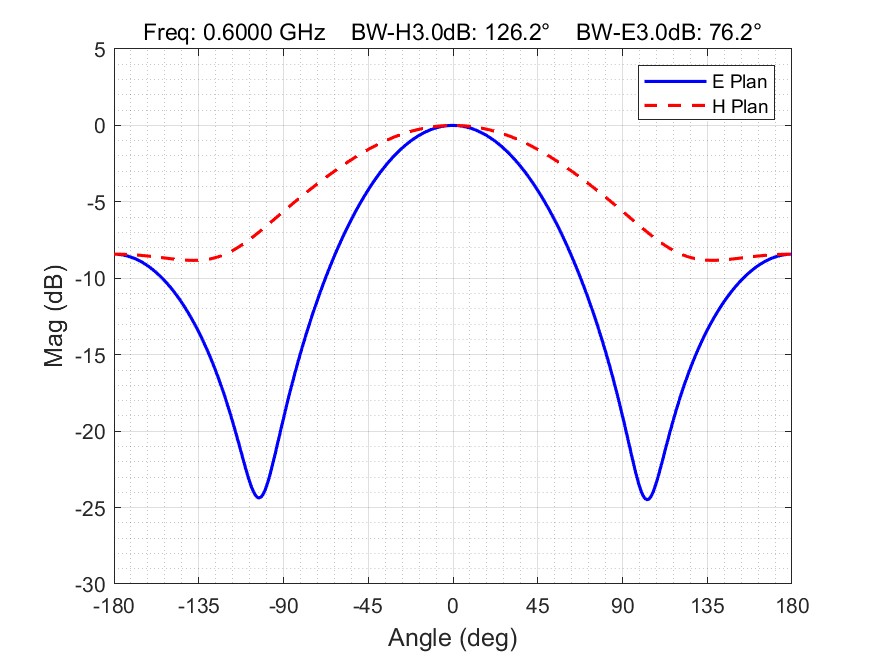

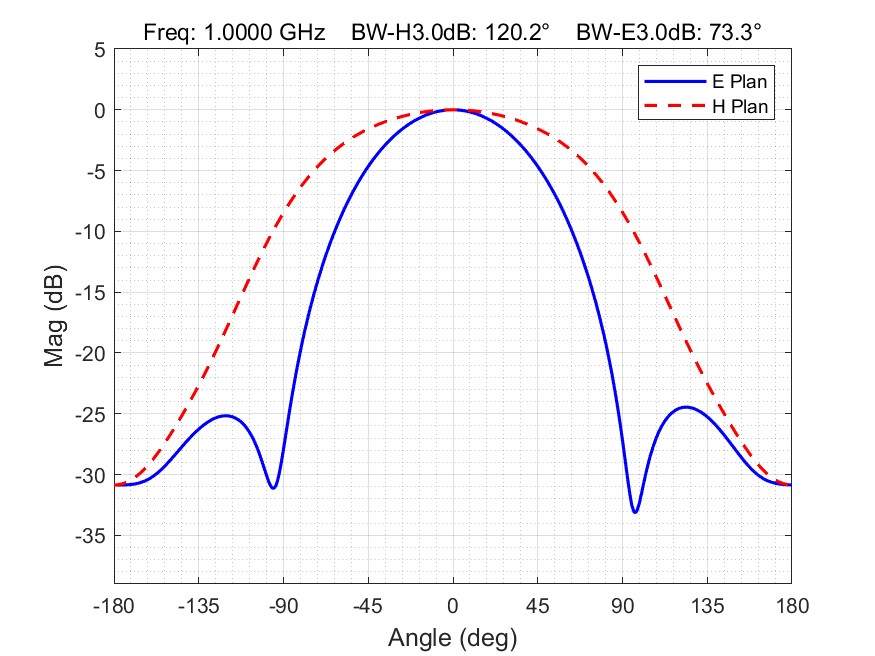

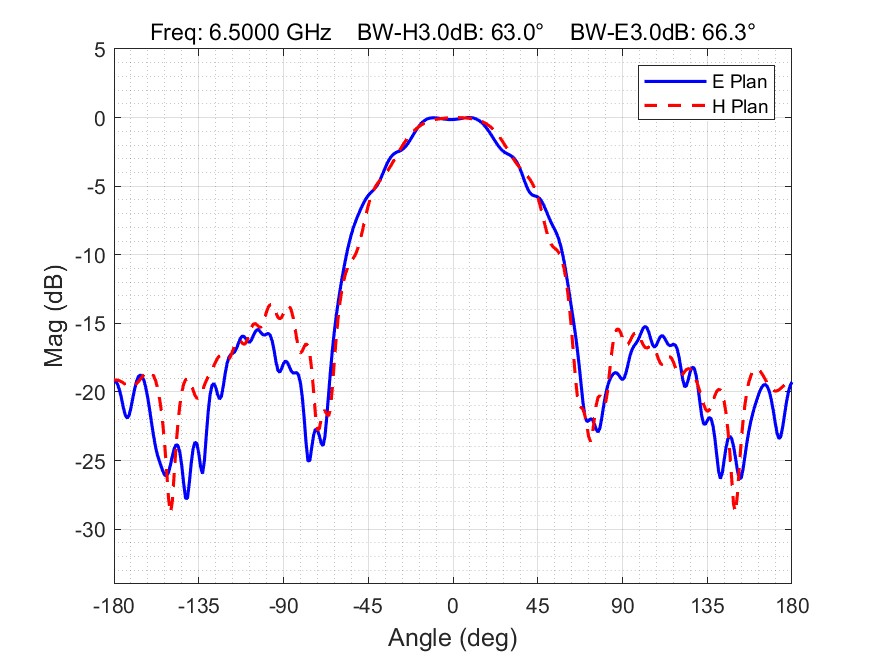

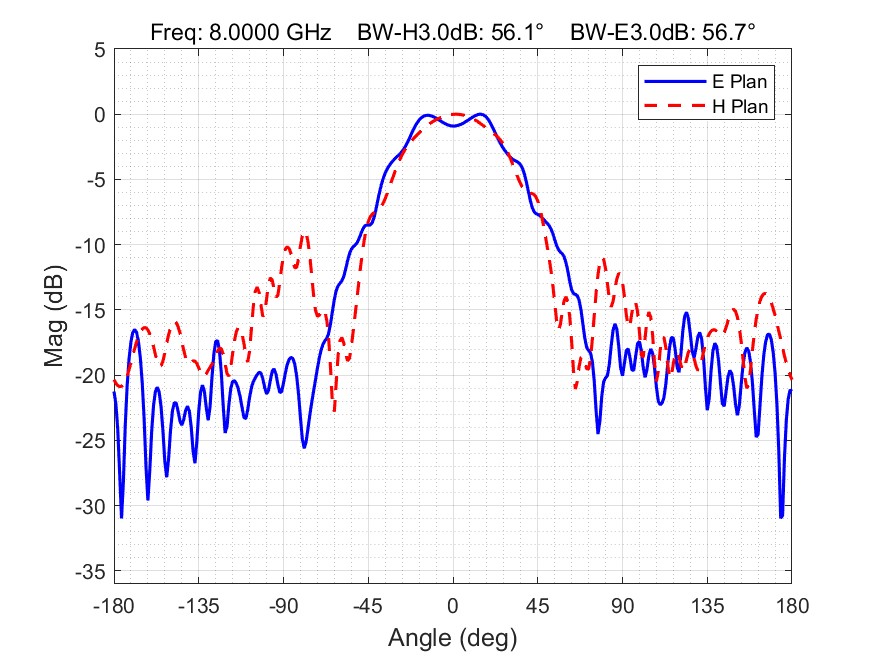

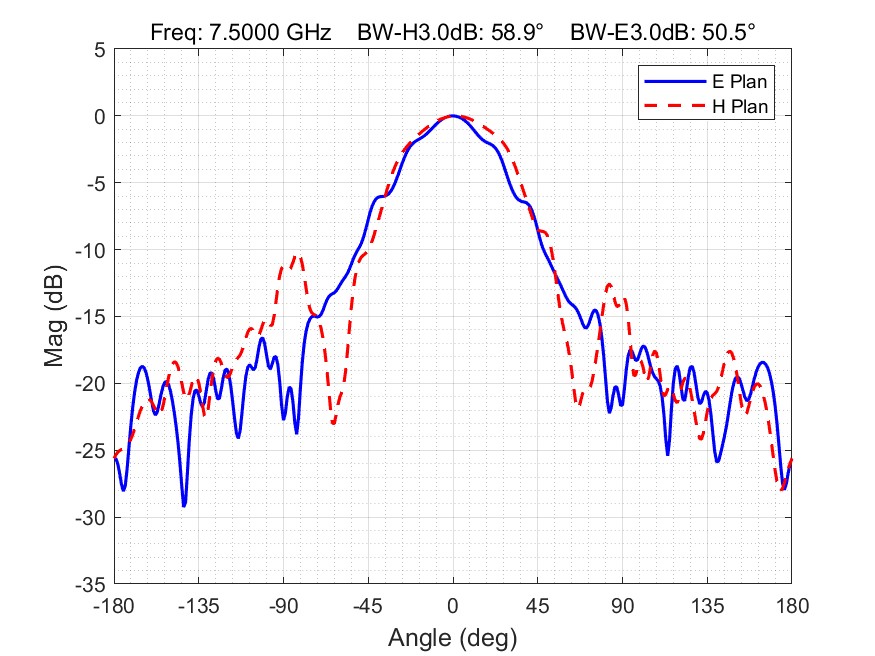

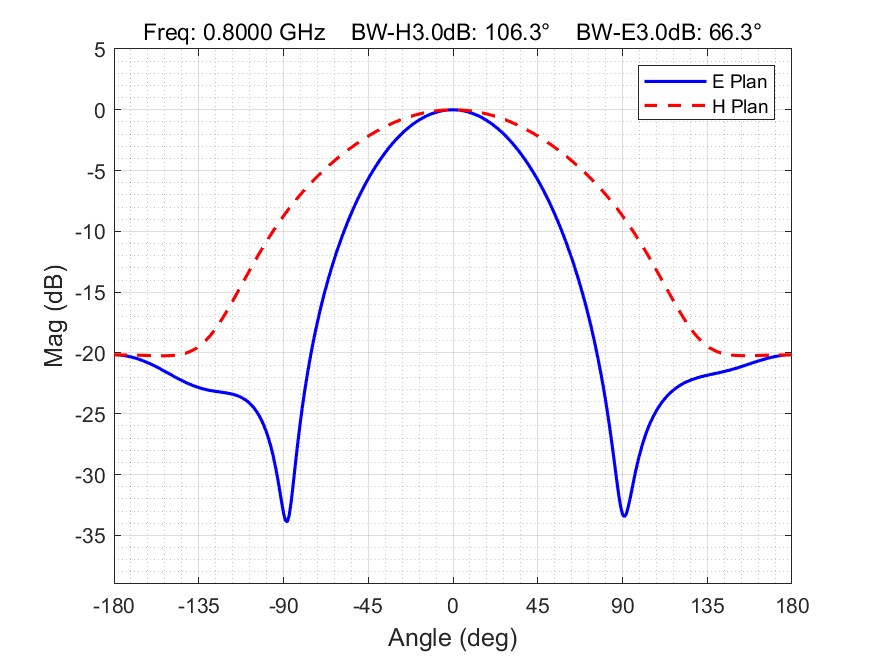

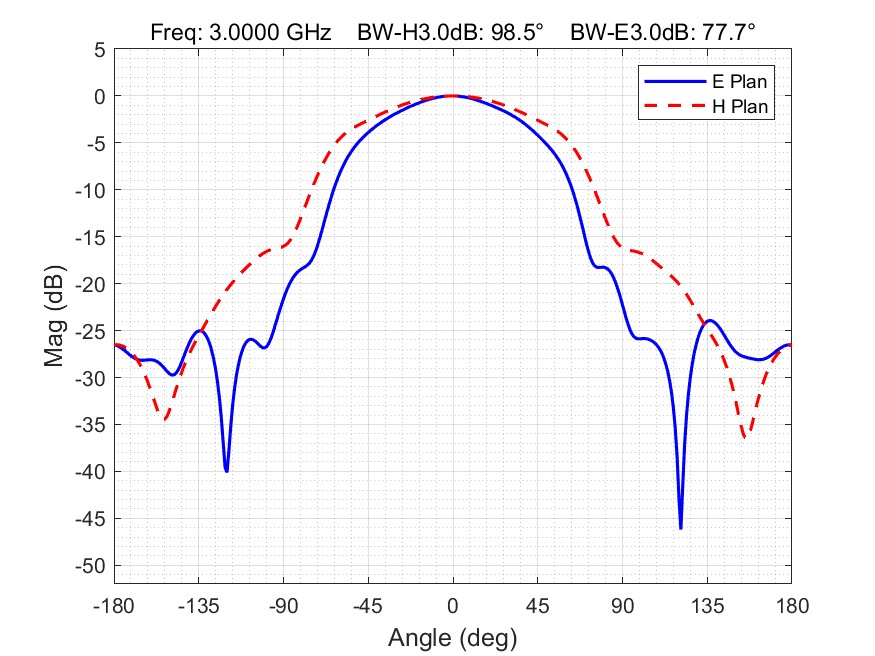

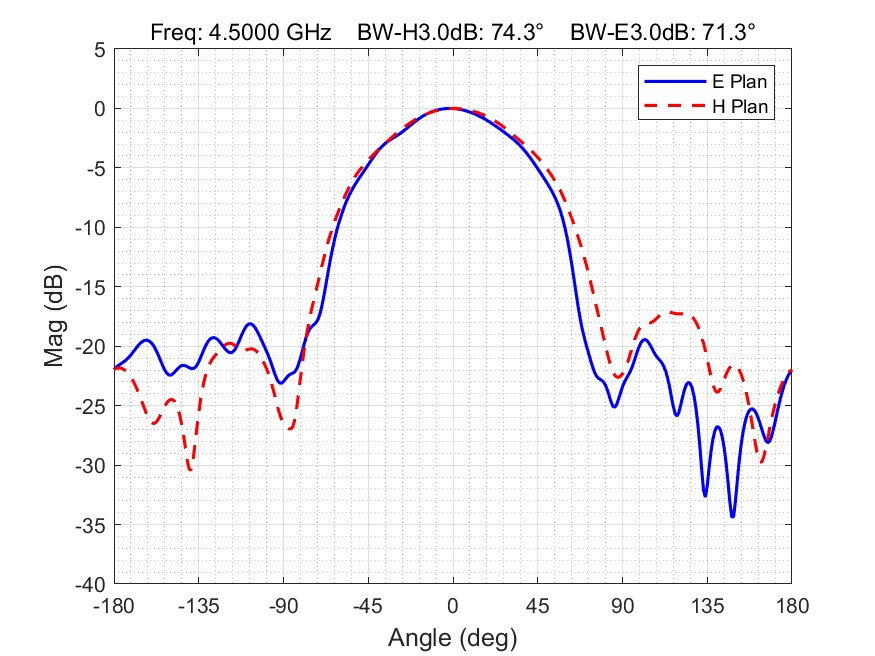

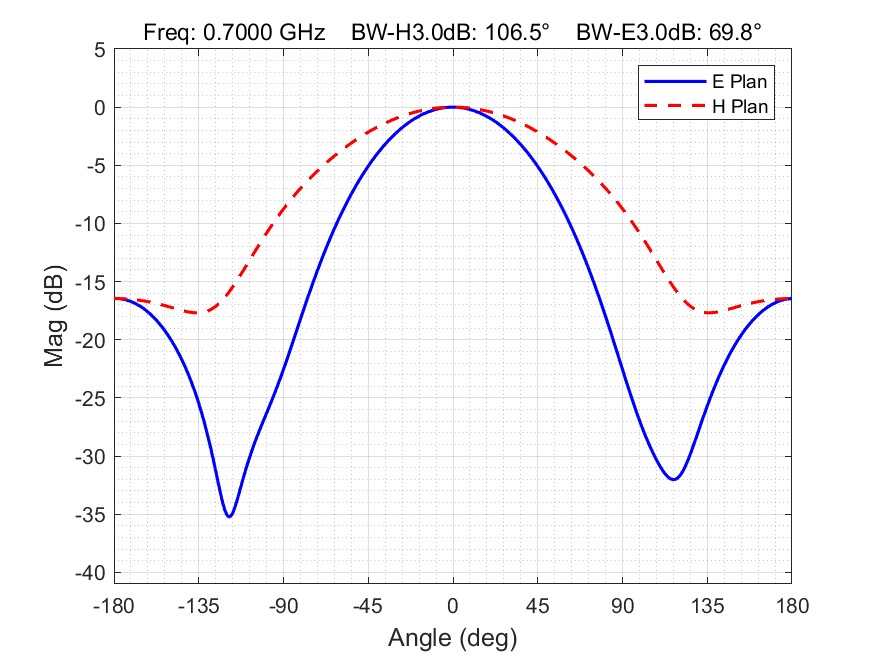

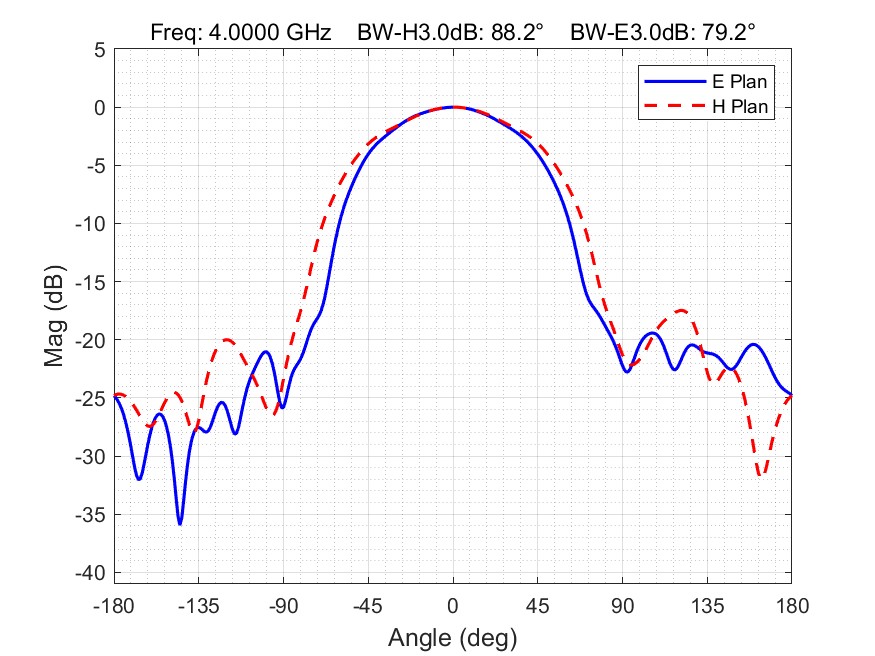

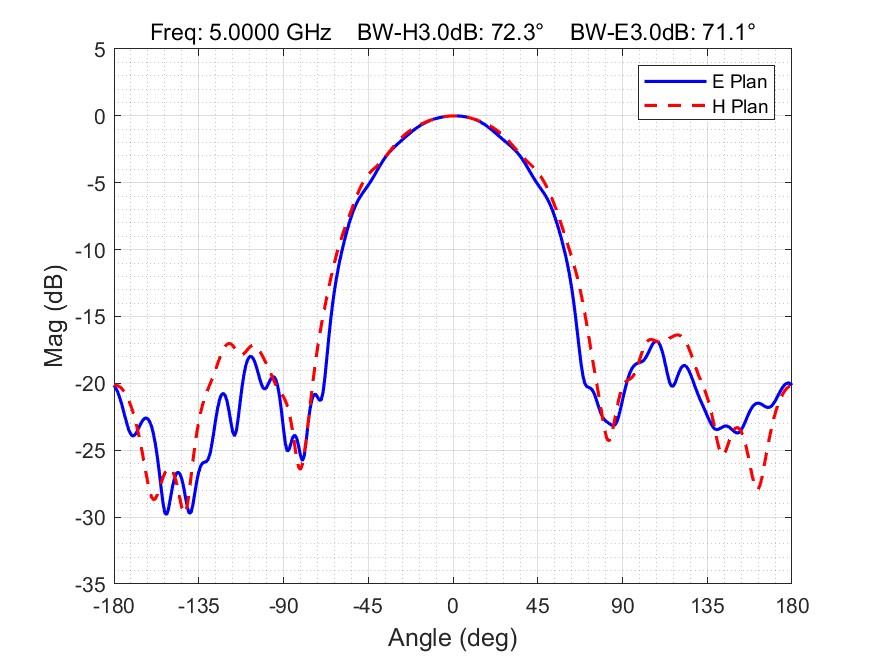

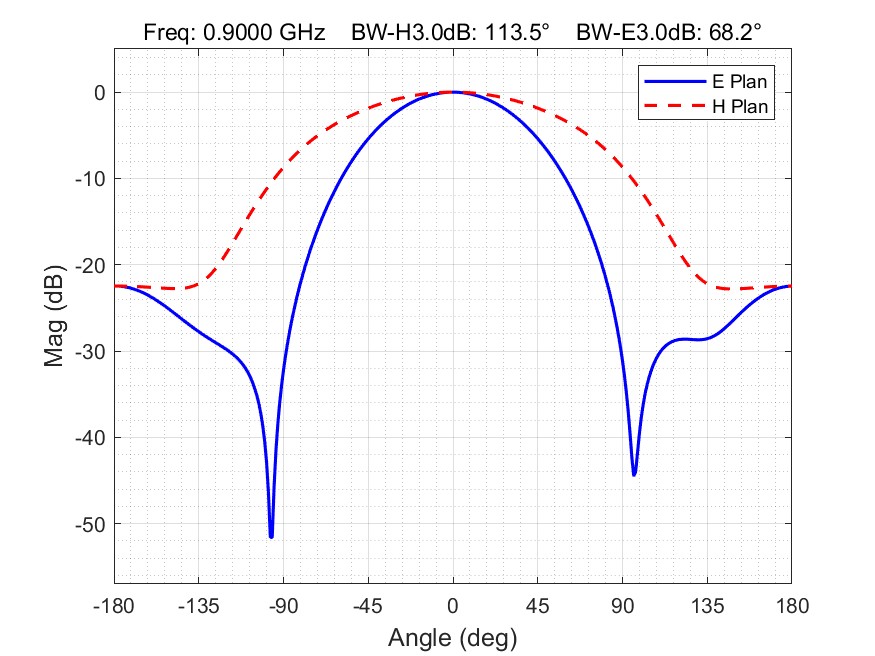

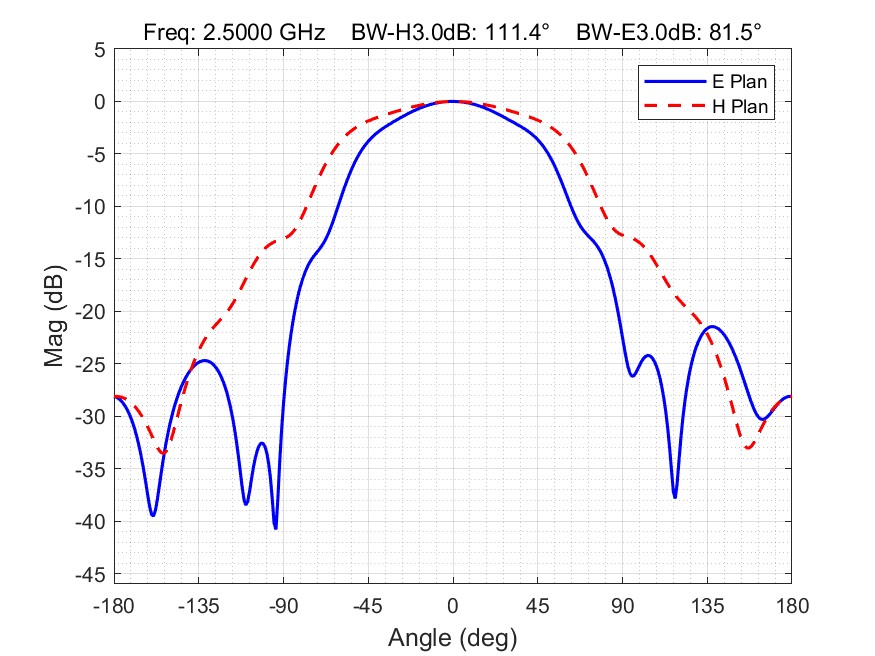

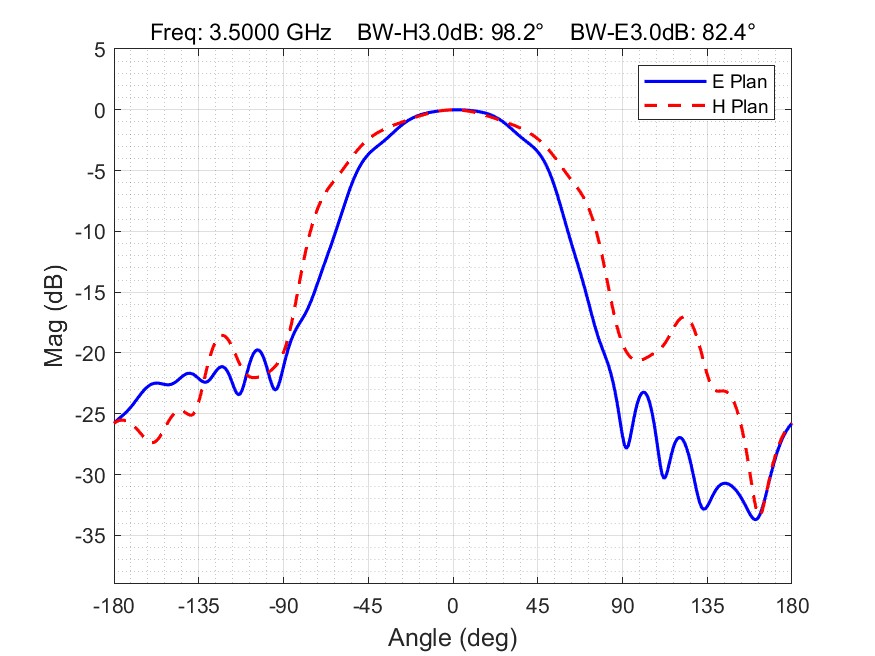

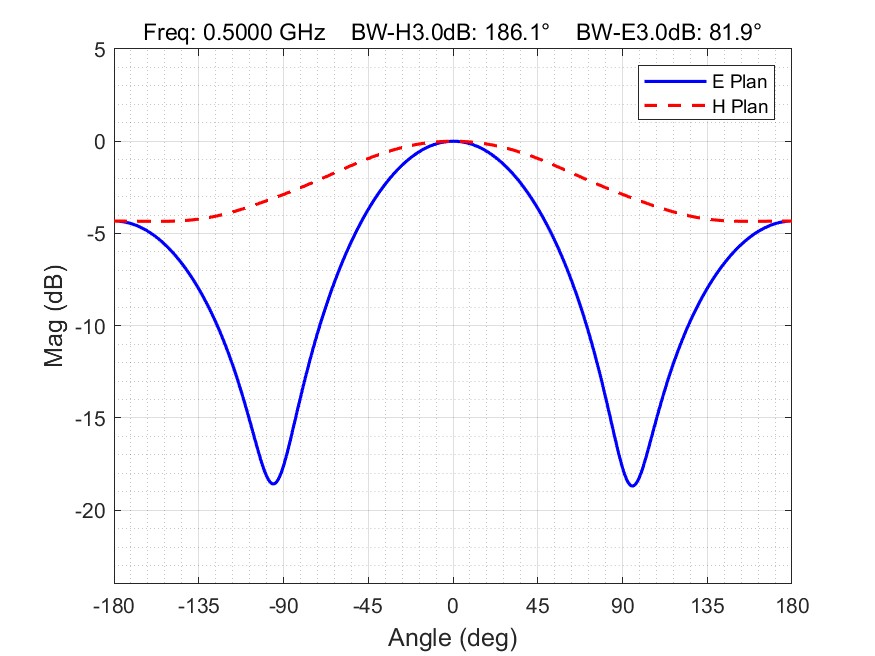

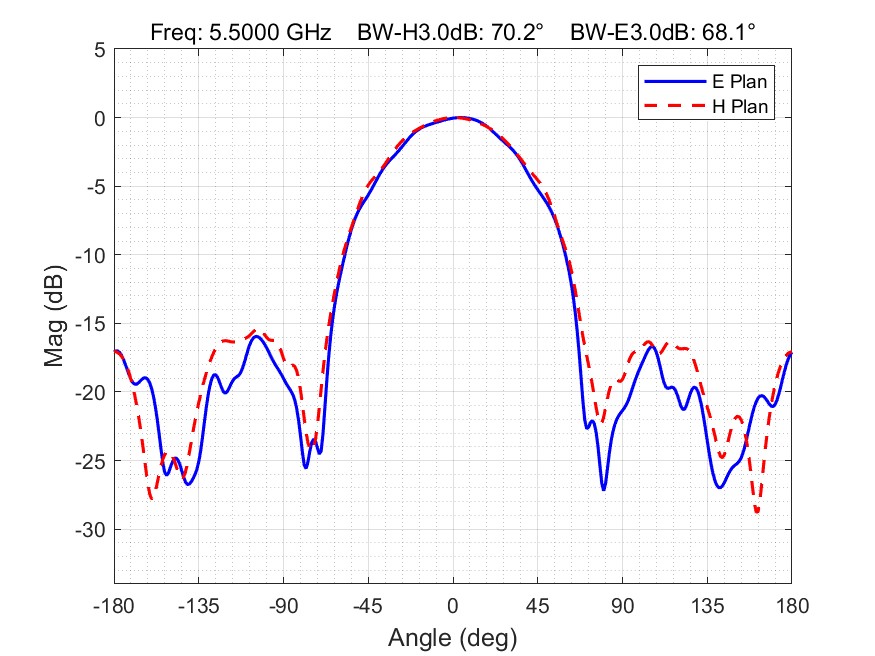

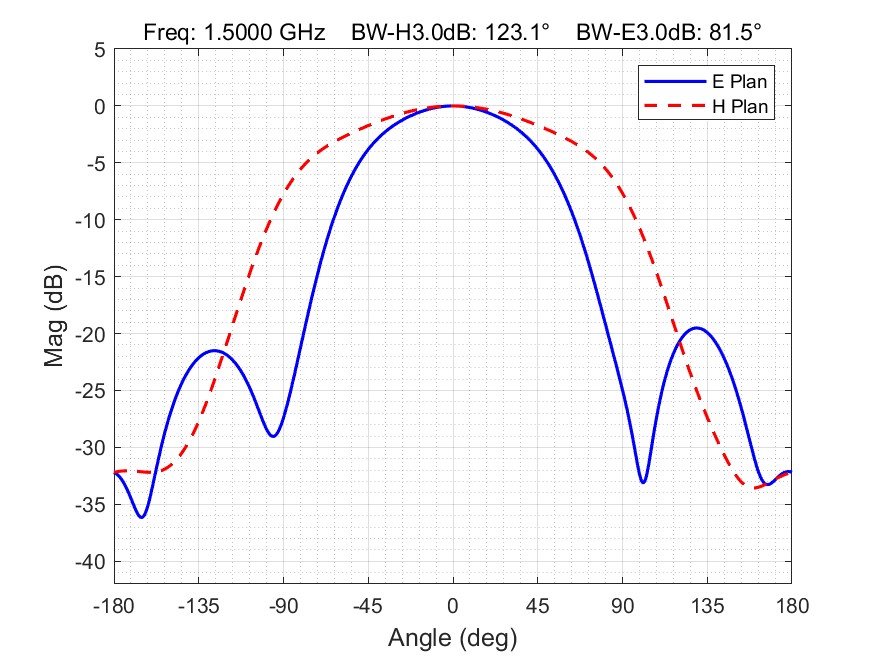

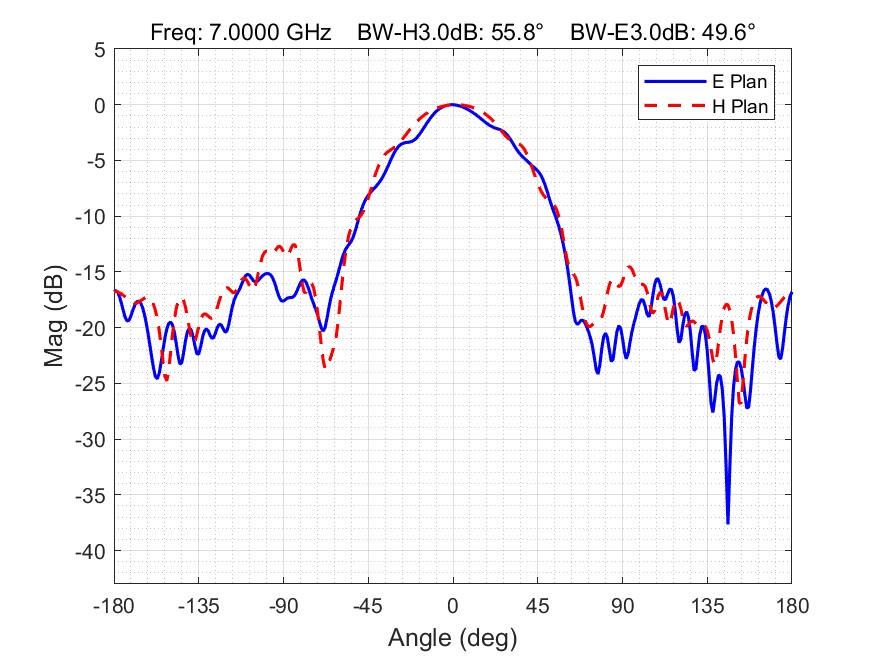

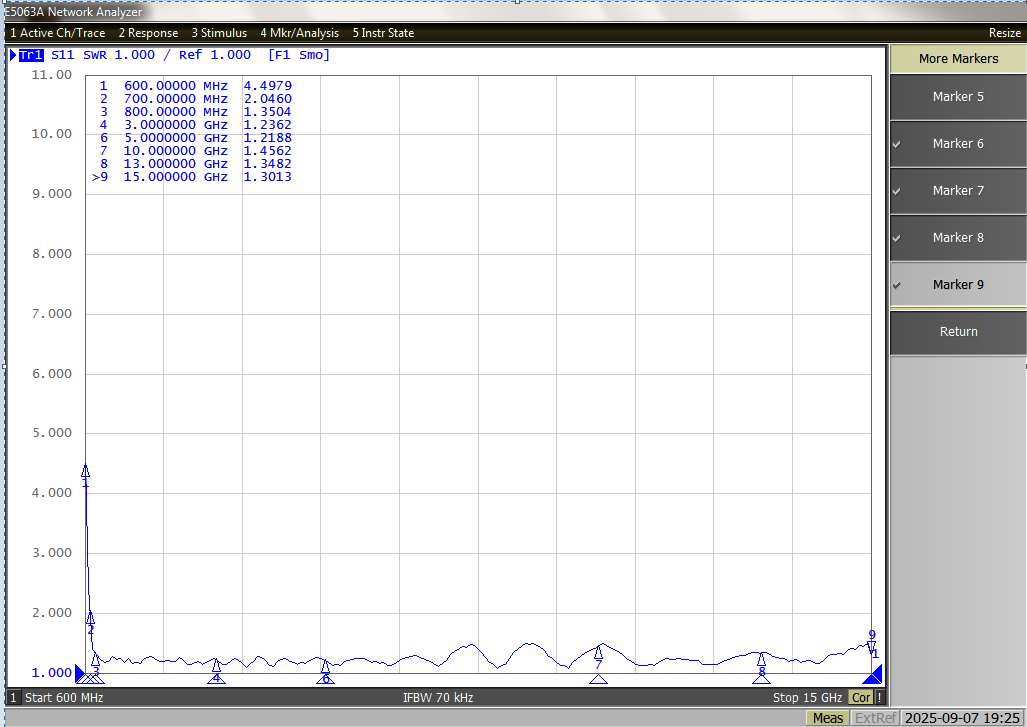

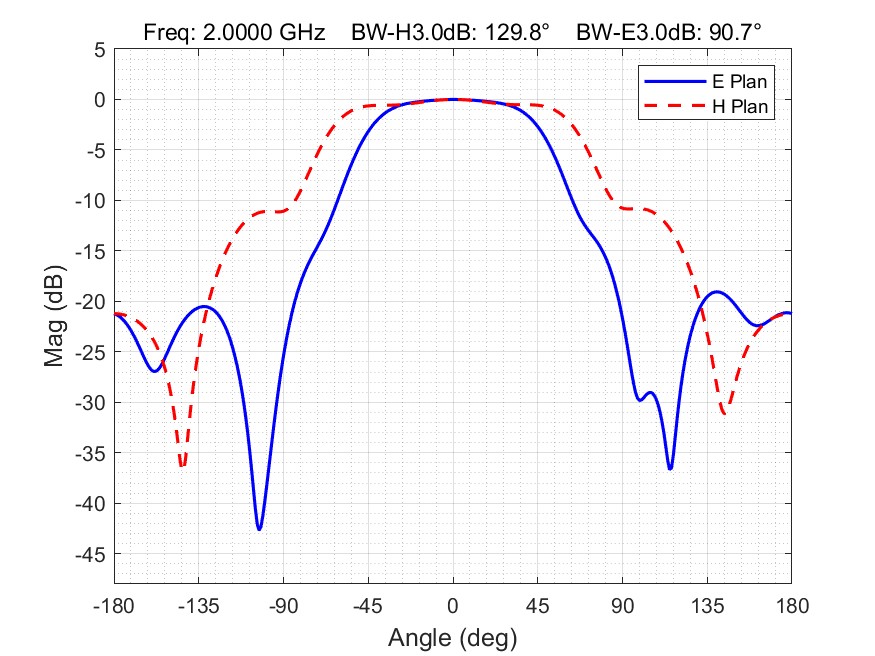

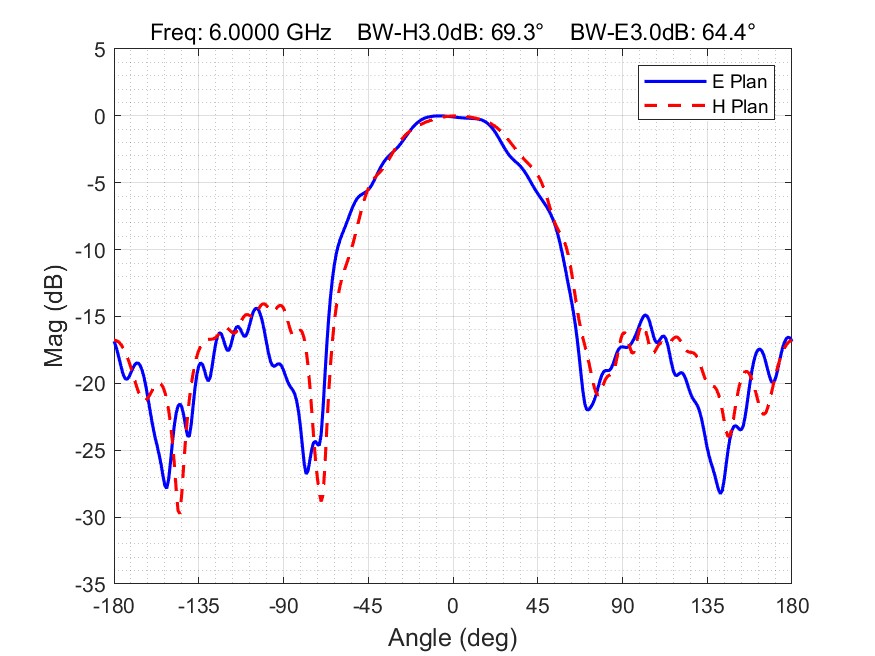

Leader-mw Test Data
Leader-mw  mathematical definition of antenna

The mathematical definition of antenna coefficient K is as follows:

K

The meanings of each parameter are as follows:

E: the field intensity at the spatial position of the receiving antenna, in unit of V/m;

V: voltage value received by the receiving antenna port, in unit of V.

The calculation formula of antenna coefficient expressed in logarithm is as follows:

KK

Log-periodicDipoleAntenna use

(1) Mainly used in ultra-short wave band, can also be used as short wave communication antenna and medium wave, short wave broadcast transmission antenna. Log-periodic antennas can also be used as feeders for microwave reflector antennas. It can be used for amateur radio and citizen band radio operations, as well as scientific research and monitoring.

(2) Log-periodic Dipole Antenna, they are able to maintain consistent radiation patterns over a wide range of frequencies, making them useful in applications where antennas need to be able to work across multiple frequency bands without major adjustments or modifications
