ANT0112 High Gain Omnidirectional Antenna

Type:ANT0112

Frequency:225MHz~512MHz

Gain, Typ (dB):≥3 Max. deviation from circularity :±1.0dB(TYP.)

Horizontal radiation pattern:±1.0dB

Polarization:vertical polarization

VSWR: ≤2.5: 1

Impedance, (Ohm):50

Connecter:N-50K

Outline: φ280×1400mm


Product Detail

Product Tags

Leader-mw Introduction to High Gain Omnidirectional Antenna

chengdu leader microwave tech.,(leader-mw)ANT0112 high-gain omnidirectional antenna, a powerful and versatile solution that enhances the performance of wireless communications. The antenna is designed to provide maximum coverage and signal strength, making it ideal for a variety of applications, including indoor and outdoor wireless networks, point-to-multipoint systems and IoT (Internet of Things) devices.

With its high-gain feature, this antenna boosts signal strength and extends the range of your wireless network, allowing you to enjoy reliable and high-speed connections over a larger area. Whether you want to improve the performance of your Wi-Fi network, extend the coverage of your cellular signal, or enhance the communication capabilities of your IoT devices, the ANT0112 high-gain omnidirectional antenna is the perfect choice.

The antenna is omnidirectional, meaning it can receive and transmit signals in all directions, making it ideal for environments where signals may come from different directions. The omnidirectional nature of this antenna ensures that it provides a consistent and reliable connection to all devices within its coverage area without the need for constant adjustment or repositioning.

Leader-mw Specification
ANT0112HG 225MHz~512MHz

Frequency Range: 225-512MHz
Gain, Typ: 3TYP.
Max. deviation from circularity ±1.0dB(TYP.)
Horizontal radiation pattern: ±1.0dB
Polarization: vertical polarization
VSWR: ≤ 2.5: 1
Impedance: 50 OHMS
Port Connectors: N-50K
Operating Temperature Range: -40˚C-- +85 ˚C
weight 20kg
Surface Color: Green
Outline: φ280×1400mm
LEADER-MW Outline Drawing



Remarks:

Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 20kg

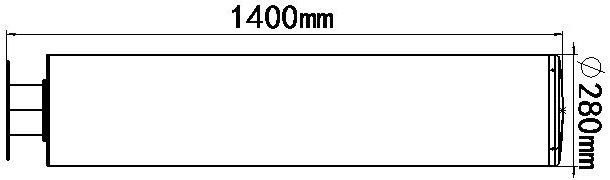

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: N-Female
