ANT01231HG high gain omnidirectional wifi antenna

Type:ANT01231HG

Frequency:700MHz~1600MHz

Gain, Typ (dB):≥6(TYP. 0.8~1.6GHz) Max. deviation from circularity :±1dB(TYP.)Horizontal radiation pattern:±1.0dB

Polarization:vertical polarization

3dB Beamwidth, E-Plane, Min (Deg.):E_3dB:≥10

VSWR: ≤2.5: 1

Impedance, (Ohm):50

Connecter:N-50K

Outline: φ175×964mm


Product Detail

Product Tags

ANT01231HG is a high-gain omnidirectional WiFi antenna suitable for devices with a frequency range of 700MHz to 1600MHz. The antenna uses superior technology and materials to ensure its long-lasting performance in harsh environmental conditions. It has a wide range of applications, including smart home, wireless router, industrial automation, remote monitoring and so on.

The antenna operates at temperatures ranging from -40°C to +85°C and is designed to operate in extreme temperature conditions for a wide range of outdoor and industrial applications. Its omnidirectional performance enables it to obtain high quality signal reception and transmission in any direction, while the high gain design can also make full use of signals and improve the performance of wireless communication.

ANT01231HG antenna is made of high quality material, which is durable and waterproof and dustproof. It is simple and easy to install, compatible with a variety of devices, and provides reliable communication solutions. Whether you are at home, office or outdoors, ANT01231HG antenna can provide you with stable and efficient wireless communication service.

ANT01231HG high gain omnidirectional wifi antenna SPECIFICATION
Frequency Range: 700-1600MHz
Gain, Typ: 6(TYP. 0.8~1.6GHz)
Max. deviation from circularity ±1dB(TYP.)
Horizontal radiation pattern: ±1.0dB
Polarization: vertical polarization
3dB Beamwidth, E-Plane, Min (Deg.): E_3dB:≥10
VSWR: ≤ 2.5: 1
Impedance: 50 OHMS
Port Connectors: SMA-50K
Operating Temperature Range: -40˚C– +85 ˚C
weight 8kg
Surface Color: Green
Outline: φ175×964mm

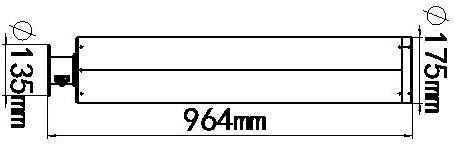

ANT01231HG Outline Drawing

All Dimensions in mm

All Connectors:N-50k

1600-11600-11
