High Power RF Power Divider

Type:LPD-0.698/2.7-3NFrequency range: 0.698-2.7GhzInsertion Loss:0.6dBVSWR: 1.25Connecter:N-female/DIN-female/4.3-10-femalePower:200/300/500WTemperature:-35~+60


Product Detail

Product Tags


LEADER-MW High power airline Power Divider

We can develop new high power power divider based on customers requirements.LPD-0.698/2.7-2N/DIN can meet 300 and 500w average power.We're professional high powerRF power divider manufacturers and suppliers in China, providing customized RF high power power divider for sale. WeLCome to wholesale RF high power power divider at low price from our factory.

LEADER-MW Application

●High power rf Power divider allow you to use a common distributor system for all mobile communication applications in the broad frequency range.

●When the signal is distributed for the in-house distribution, in office buildings or sports halls, power splitter can split up the incoming signal in two, three, four or more identical shares.

●Divide one signal into multichannel ones, that ensures the system to share common signal source and BTS system.

●Meet various demands of network systems with the Ultra-wideband design.

●High power rf Power divider Suitable for the indoor coverage system of cellular mobile communication

LEADER-MW Specifications:

Part Number

Frequency Range (MHz)

Way

Insertion Loss (dB)

VSWR

Average Power (w)

PIM3(dBc)

Connector

LPD-0.698/2.7-2N/DIN

698-2700

2

≤3.6dB

≤1.25: 1

N:300W,DIN:500W

≤-150@ +43dBm×2

N/DIN

LPD-0.698/2.7-3N/DIN

698-2700

3

≤5.6dB

≤1.25: 1

N:300W,DIN:500W

≤-150@ +43dBm×2

N/DIN

LPD-0.698/2.7-4N/DIN

698-2700

4

≤6.8dB

≤1.25: 1

N:300W,DIN:500W

≤-150@ +43dBm×2

N/DIN

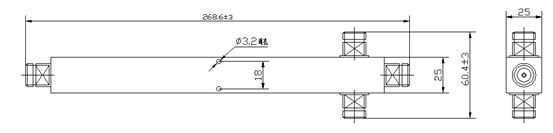

LEADER-MW Outline

All Dimensions in mm

All Connectors:SMA-F

Tolerance :±0.3MM
