LPD-2/18-6S ku band 6 Way Power Divider

Type:LPD-2/18-6S                                               Frequency range: 2-18Ghz

Insertion Loss:2.0dB                                          Amplitude Balance:±0.6dB

Phase Balance: ±6                                               VSWR: 1.5

Isolation:18dB                                                      Connecter:SMA-F

Power:10W                                                           Temperature: -32℃to+85℃


Product Detail

Product Tags

Leader-mw Introduction to 6 way power divider

Chengdu Leader microwaveTechnology, China's leading passive component manufacturer, launches the revolutionary Wilkinson power divider. With its superior performance, this power divider will redefine industry standards by providing low insertion loss and high isolation.

At Chengdu LeaderTechnology, we are committed to providing high-quality electronic components that meet the needs of global customers. Our Wilkinson power dividers deliver on this promise with their cutting-edge design and advanced technology. This product is carefully designed to ensure excellent performance and reliability.

One of the distinguishing features of our Wilkinson power dividers is their low insertion loss. This component ensures optimal efficiency with minimal energy loss during power distribution. Whether you are handling high frequency signals or require precise power distribution, our splitters ensure consistent and reliable performance.

Leader-mw Introduction 6 way power divider

Type No::LPD-2/18-6S Power Divider Splitter Specifications

Frequency Range: 2000-18000MHz
Insertion Loss: 2.0dB
Ampltude Balance: ≤+0.6dB
Phase Balance: ≤土6 deg
VSWR: ≤1.5: 1
Isolation: ≥18dB
Impedance: 50 OHMS
Conectors: SMA-F
Power Handling: 10 Watt
Operating Temperature: -32℃to+85℃



Remarks:

1、Not Include Theoretical loss 8db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.2kg

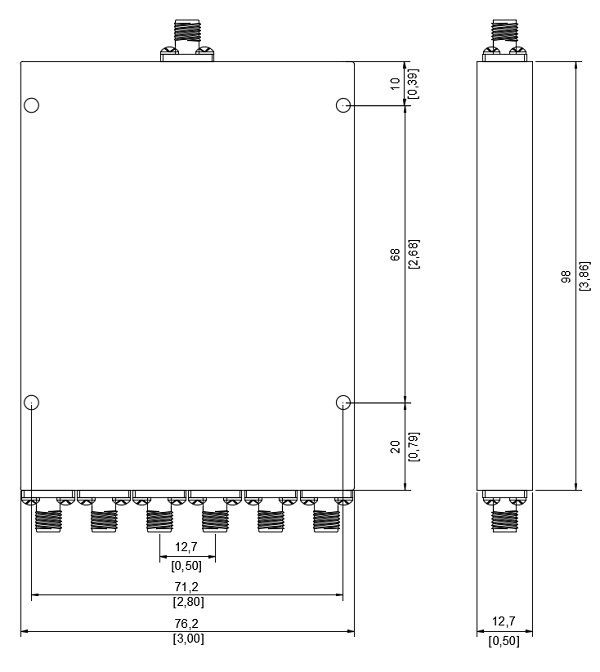

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

6WAG
Leader-mw Test Data
6WAY-2
6WAY-1
Leader-mw FAQ

1.Can i get a free sample firstly?

Very sorry it is not available.

2.Can I get a lower price?

OK, that's no porblem. I know the price is the most important part to the customer. We could discuss it based on the order quantity.

3.Could you give us help on the PON solution?

OK, it is our pleasure to help you. We not only provide equipments needed in thesolution, but also offer the technical support about it if the customer need it.

4.What is your MOQ?

No MOQ for any sample test

5.OEM/ODM Service is available?

Yes, we canoffer OEM/ODM service. But it will have requirement for the order quantity.

6. What's your company advantage?

We have our own R&D, production, sales and the rich experience technical support center. We specialize in offering the whole network solution and all equipments needed in this solution.

7. For Trade Terms,such as payment and leadtime.

·Payment Terms:T/T 100% in advance,Paypal and credit card for the sample order ·

Price Terms:FOB any port in China ·

Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent

·Leadtime: Sample order,3-5work days; Bulk order 20-30work days(after your payment )

8.How about the Warranty?

·The 1st year: replace the new equipment if the your products failed ·

The 2nd year: supplying free maintanence service, just charge components cost fee. (Without damage caused by the following cases:1.Stricken by thunder high voltage, watering 2. Damage caused by accidents. 3. Product exceeds the warranty period and so on)

The 3rd year:charge components cost fee and labor fee. For more information,Please feel free to contact with us !
