LBF-12642/100-2S Band Pass filter

Type:LBF-12642/100-2S                                 Frequency:12592-12692Mhz

Insetion loss:2dB                                               VSWR:≤1.3:1

Rejection : ≥60dB@Dc-12242Mhz,≥60dB@13042-18000Mhz

Port Connectors : SMA-Female                       Power:10w


Product Detail

Product Tags

Leader-mw Introduction to band pass filter

Leader microwave Tech.,band pass filter is ideal for system integrators, RF engineers, and telecommunications professionals who demand high-quality components for their projects. With its superior specifications and robust construction, the LBF-12642/100-2S sets a new standard for signal filtering and frequency control.

In conclusion, theLBF-12642/100-2S band pass filter is a versatile and reliable solution for applications within the 12592-12692MHz frequency range. With outstanding rejection capabilities, low insertion loss, and a power handling capacity of 40w, this filter meets the demands of modern communications and RF systems. Experience the difference with our LBF-12642/100-2S  band pass filter – delivering precision and performance for your critical applications.

Leader-mw Specification
Frequency Range 1.2592-1.2692GHz
Insertion Loss ≤2.0dB
VSWR ≤1.3:1
Rejection ≥60dB@Dc-12242Mhz,≥60dB@13042-18000Mhz
Power Handing 10W
Port Connectors SMA-Female
Surface Finish Black
Configuration As Below (tolerance±0.5mm)
colour black



Remarks:

Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.10kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

12692

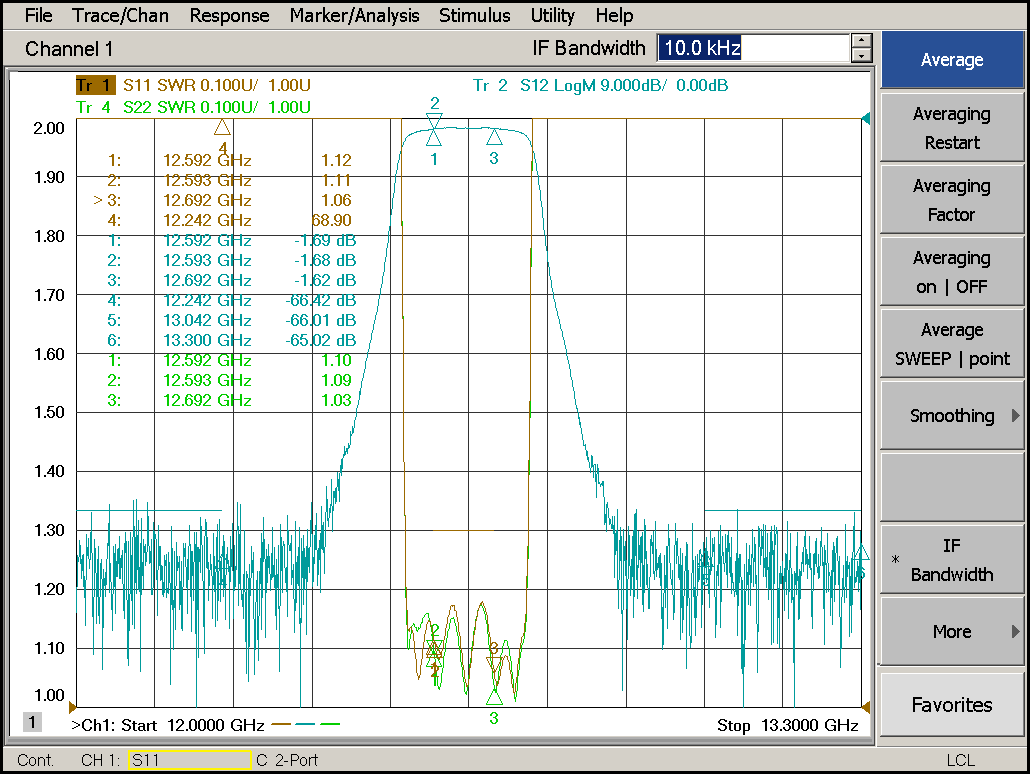

Leader-mw Test Data
12642.22
12642.11
