LBF-1450/1478-2S Band Pass filter

Type:LBF-1464/28-2S                                            Frequency Range :1450-1478MHz

Insertion Loss: ≤2.0dB                                           VSWR :≤1.5:1

Rejection :40dB@DC-4Ghz  ≥10dB@22.5-24Ghz

Power Handing :50W                                             Port Connectors :SMA-Female

Surface Finish :Black                                             Weight:0.1KG


Product Detail

Product Tags

Leader-mw Introduction to Band Pass Filter

Chengdu leader micrwave Tech., LBF-1450/1478-2S bandpass filters  are designed to provide high performance in the 1450-1478MHz frequency range. The filter has an insertion loss of ≤2.0dB and a VSWR of ≤1.5:1, ensuring minimized signal loss and improved efficiency in communication systems.

But what sets our bandpass filters apart is their impressive rejection capabilities. With rejection capabilities of ≥40dB at DC-4GHz and ≥10dB at 22.5-24GHz, you can trust that this filter will effectively eliminate unwanted signals and interference, allowing the signals you want to pass through clearly and accurately.

In addition to excellent performance, the LBF-1450/1478-2S filters offer 50W of power handling capability, making them suitable for high-power applications. Its female SMA connector ensures a safe and secure connection, while its sleek black finish adds a professional touch to your setup.

Leader-mw Specification
Frequency Range 1450-1478MHz
Insertion Loss ≤2.0dB
VSWR ≤1.5:1
Rejection 40dB Min. @ 1440MHz @ 1488MHz
Power Handing 50W
Port Connectors SMA-Female
Surface Finish Black
Configuration As Below (tolerance±0.5mm)
weight 0.1kg



Remarks:

Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.10kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

1450

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

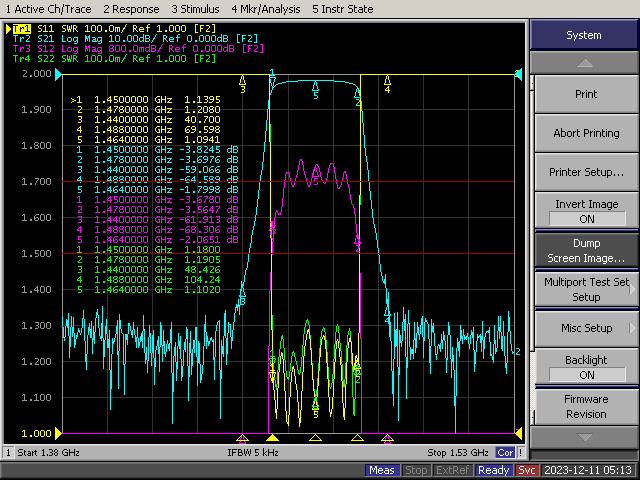

Leader-mw Test Data
051
052
