LCB-832/880/1550/1920/2500-Q5-1 5 band combiner
| Leader-mw | Introduction to 5 way Combiner |
Introducing the Leader-MW LCB-832/880/1550/1920/2500 -Q5-1 , the ultimate signal combining solution for telecommunications engineers, RF technicians, and anyone else who needs reliable and efficient equipment. Designed specifically to meet the needs of modern communications equipment, this innovative product will revolutionize the way you combine signals.
The LCB-758/869/1930/2110/2300-Q5 delivers unparalleled performance, seamlessly integrating multiple signals with precision and accuracy. Its advanced technology ensures optimal signal quality, eliminates interference and improves overall efficiency. With this device, you can trust that your signal will come together perfectly every time, saving you time and resources.
Reliability is the main feature of LCB-832/880/1550/1920/2500 -Q5-1 This device is designed to withstand rigorous use in a variety of environments, delivering consistent performance in any condition. Its sturdy construction and durable components make it a reliable tool you can rely on day after day.
Ease of use is another highlight of this excellent product. The LCB-832/880/1550/1920/2500 -Q5-1 features intuitive controls and a user-friendly interface that makes signal combination easy and simple. Its simple operation allows for quick setup and worry-free maintenance, ensuring a smooth and worry-free user experience.
| Leader-mw | Specification |
| Specification:LCB-832/880/1550/1920/2500 -Q5-1 | ||||||||||||||
| Frequency Range | 832-862Mhz | 880-915MHz | 1550-1785 MHz | 1920-1980 MHz | 2500-2570MHz | |||||||||
| Insertion Loss | ≤1.4dB | ≤1.4dB | ≤1.4dB | ≤1.4dB | ≤1.4dB | |||||||||
| Ripple | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤1.0dB | ≤1.0dB | |||||||||
| VSWR | ≤1.5:1 | ≤1.5:1 | ≤1.5:1 | ≤1.5:1 | ≤1.5:1 | |||||||||
| Rejection(dB) | ≥30@Dc-821Mhz | ≥30@871.5Mhz | ≥30@925-1450Mhz | ≥30@1805-1880Mhz | ≥30@2110-2400Mhz | |||||||||
| ≥30@871.5Mhz | ≥30@925-1450Mhz | ≥30@1805-1880Mhz | ≥30@2110-2400Mhz | ≥30@2620-3000Mhz | ||||||||||
| Operating .Temp | -30℃～+65℃ | |||||||||||||
| Max.Power | 40W | |||||||||||||
| Connectors | SMA-Female（50Ω） | |||||||||||||
| Surface Finish | Black | |||||||||||||
| Configuration | As Below(tolerance±0.3mm) | |||||||||||||
Remarks:
Power rating is for load vswr better than 1.20:1
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | Aluminum |
| Connector | ternary alloy three-partalloy |
| Female Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 2.5 kg |
Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA-Female

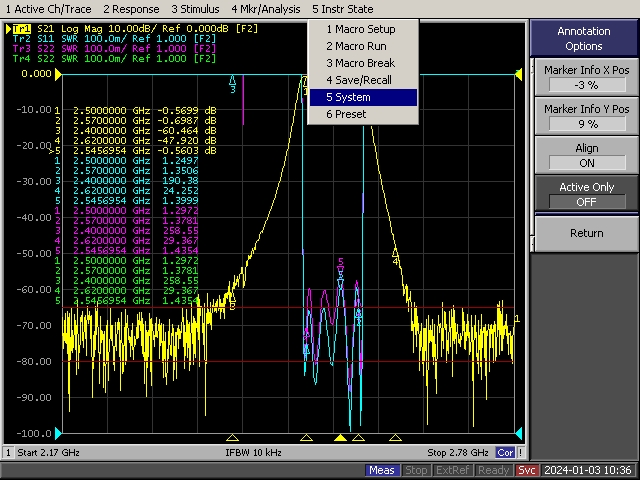

| Leader-mw | Test Data |
