LCB-832/880/1710/1920/2500 -Q5-1 5 way /band/combiner/multiplexer
| Leader-mw | Introduction to 5 way Combiner |
Introducing the LCB-832/880/1710/1920/2500 -Q5-1 from Chengdu Leader Microwave Technology Co., Ltd. (leader-mw), which is the ultimate solution to meet all your signal combination needs. Whether you are an experienced telecommunications engineer, a dedicated RF technician, or anyone who needs a reliable, efficient signal combining solution, this device is the perfect choice for you.
The LCB-832/880/1710/1920/2500 -Q5-1 stands out from the competition with its unparalleled performance, reliability and ease of use. Designed to meet the demanding requirements of today's communications industry, this powerful device ensures seamless signal combination, allowing you to optimize operational efficiency and productivity.
With its advanced technology and precision engineering, the LCB-832/880/1710/1920/2500 -Q5-1 delivers superior performance, ensuring clear and consistent signal combination results. This means that no matter how complex your communications network is, you can rely on this device to deliver uncompromised signal quality.
One of the main advantages of the LCB-832/880/1710/1920/2500 -Q5-1 is its user-friendly design, which makes operation very simple. You can quickly set up and start using it without any hassle, saving you valuable time and energy. Additionally, its compact and lightweight construction makes it highly portable, allowing you to take it with you wherever you work
| Leader-mw | Specification |
| Specification:LCB-758/869/1930/2110/2300 -Q5 | ||||||||||||||
| Frequency Range | 832-862Mhz | 880-915MHz | 1710-1785MHz | 1920-1980 MHz | 2500-2570MHz | |||||||||
| Insertion Loss | ≤1.3dB | ≤1.3dB | ≤1.0dB | ≤0.8dB | ≤0.8dB | |||||||||
| Ripple | ≤0.6dB | ≤0.6dB | ≤0.6dB | ≤0.6dB | ≤0.6dB | |||||||||
| VSWR | ≤1.4:1 | ≤1.4:1 | ≤1.4:1 | ≤1.4:1 | ≤1.4:1 | |||||||||
| Rejection(dB) | ≥20@DC-821Mhz | ≥40@DC-862mhz | ≥80@Dc-960Mhz | ≥35@Dc-1880Mhz | ≥65@DC-1980Mhz | |||||||||
| ≥48@880-3000Mhz | ≥20@925-1000mhz ≥401000-3000Mhz | ≥40@1805-1920Mhz ≥55@1920-3000Mhz | ≥60@2110-2500Mhz ≥75@2500-3000Mhz | ≥45@1980-2400Mhz,≥40@2620-3000Mhz | ||||||||||
| Operating .Temp | -30℃～+65℃ | |||||||||||||
| Max.Power | 100W | |||||||||||||
| Connectors | SMA-Female（50Ω） | |||||||||||||
| Surface Finish | Black | |||||||||||||
| Configuration | As Below(tolerance±0.3mm) | |||||||||||||
Remarks:
Power rating is for load vswr better than 1.20:1
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | Aluminum |
| Connector | ternary alloy three-partalloy |
| Female Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 2.5 kg |
Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA-Female

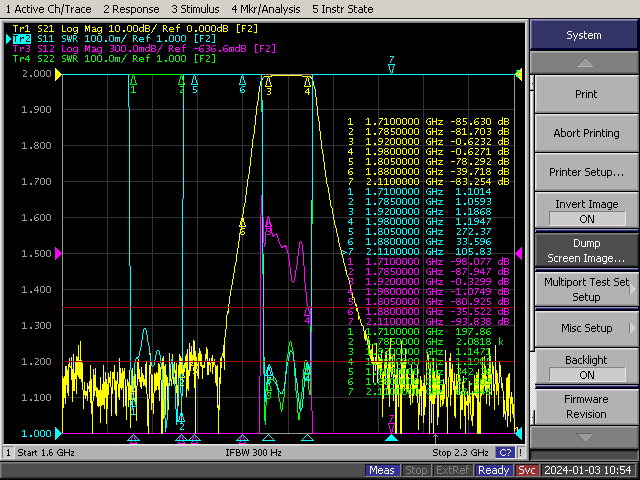

| Leader-mw | Test Data |
