LHX-HC3018-IN strip line circulator

Typy:LHX-HC3018

Frequency:960-1215Mhz

Insertion loss:0.8

VSWR:1.5

Isolation:14dB

power :50w

Temperature :-30~+70

Connectorye:drop i n


Product Detail

Product Tags

Leader-mw Introduction stripline Drop in isolator

Introducing the LHX-HC3018-IN strip line circulator, which is a cutting-edge product of Chengdu Leadr microwave Technology Co., Ltd. Designed specifically for military industrial applications, this high-quality circulator provides unparalleled performance and reliability for a variety of communications. system.

The LHX-HC3018-IN stripline circulator is designed to meet the stringent requirements of military applications, ensuring exceptional durability and functionality in the most challenging environments. With military-grade quality and precision engineering, this circulator is trusted by defense organizations and communications professionals around the world.

Designed to deliver superior performance in a variety of communications systems, this advanced circulator provides efficient signal routing and isolation to optimize the overall functionality of the system. Its innovative design and rugged construction make it ideal for military communications networks, radar systems and other critical applications where reliability is critical.

The LHX-HC3018-IN stripline circulator is seamlessly integrated and compatible with a variety of devices, making it a versatile solution for a variety of military communications needs. Its compact form factor and lightweight design further enhances its suitability for deployment in space-constrained environments.

Chengdu Leader microwave Technology Co., Ltd. has a proven track record of delivering high-quality products, and the LHX-HC3018-IN strip line circulator is no exception. Through its commitment to excellence and innovation, the company has become a leading provider of advanced technology solutions to the military and defense industries.

In summary, the LHX-HC3018-IN stripline circulator is a top-notch product that embodies the highest standards of quality, performance, and reliability. With its military-grade construction and versatility, the circulator is expected to enhance the capabilities of military communications systems and contribute to critical mission success.

Leader-mw Specification

Model

Frequency Range(MHz)

Band Width

(MHz)

Insert.Loss (dB)

MAX

Isolation (dB)

MIN

VSWR

MAX

Power(W)

Operating Temp

SHC3018

750~1000

50/(BW≤6%)

0.6

18

1.30

50

-30~+70℃

960~1215

full

0.8

14

1.50

50

-30~+70℃

1000-1400

full

0.4

16

1.35

50

-55~+85℃

1400~1700

full

0.4

20

1.25

50

-55~+85℃

1700~2000

full

0.5

20

1.25

50

-55~+85℃

2000~2400

full

0.2

20

1.2

50

-55~+85℃

2500~3000

full

0.5

18

1.3

50

-55~+85℃

3000~3500

full

0.5

18

1.30

50

-55~+85℃

3500~4000

full

0.5

18

1.30

50

-55~+85℃

4000~5000

full

0.5

18

1.30

30

-55~+85℃

5000~6000

full

0.5

18

1.30

30

-55~+85℃

6000~11000

full

0.6

17

1.40

30

-55~+85℃

Remarks:

Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing 45 Steel or easily cut iron alloy
Connector Strip line
Female Contact: copper
Rohs compliant
Weight 0.1kg

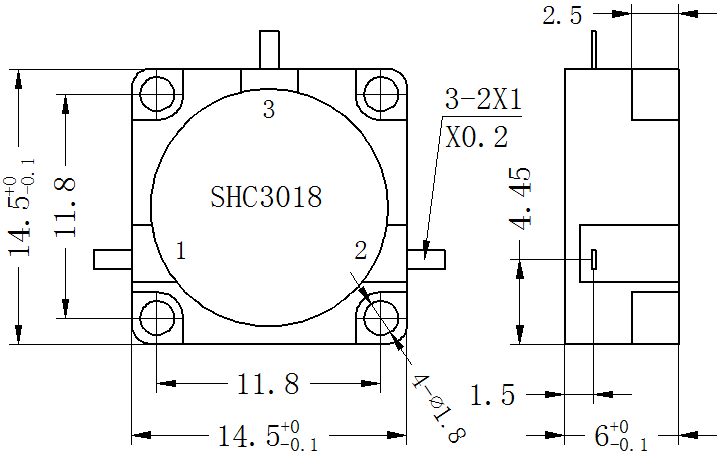

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: Strip line

HC3018 CICULATOR
