LPD-0.4/6-12S 0.4-6Ghz 12Way Power Divider

TypeNo:LPD-0.4/6-12S                                    Frequency:0.4-6Ghz

Insertion Loss:4.5 dB                                        Amplitude Balance:±1dB

Phase Balance: ±12                                            VSWR: ≤1.75

Isolation:≥15(500-6000Mhz)                         ≥13dB(400-500Mhz)


Product Detail

Product Tags

Leader-mw Introduction to 12 Way power splitter

Leader Microwave Technology Co., Ltd. is a leading supplier of high quality, reliable microwave and millimeter wave products. We attach great importance to customer satisfaction and are committed to providing innovative solutions to meet the diverse needs of our customers.

One of our flagship products is the 50 Ohm 12-way power splitter/combiner. Designed with precision and expertise, these power dividers/combiners offer superior performance and versatility. They are suitable for a wide range of applications including telecommunications, radar systems, satellite communications and more.

Ultra-Wideband: Our 50 Ohm 12-way power divider/combiner is designed to operate over an ultra-wide frequency range, ensuring compatibility with a variety of systems. This enables seamless integration and improves overall performance.

Leader-mw Specification

Type No: LPD-0.4/6-12S Power splitter Specifications

Frequency Range: 400-6000MHz
Insertion Loss: ≤4.5dB
Amplitude Balance: ≤±1dB
Phase Balance: ≤±12deg
VSWR: ≤1.75: 1
Isolation: ≥15(500-6000Mhz)≥13dB(400-500Mhz)
Impedance: 50 OHMS
Power Handling: 10Watt
Port Connectors: SMA-Female
Operating Temperature: -30℃to+60℃



Remarks:

1、Not Include Theoretical loss 10.79db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.3kg





Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

0.5-6-12S

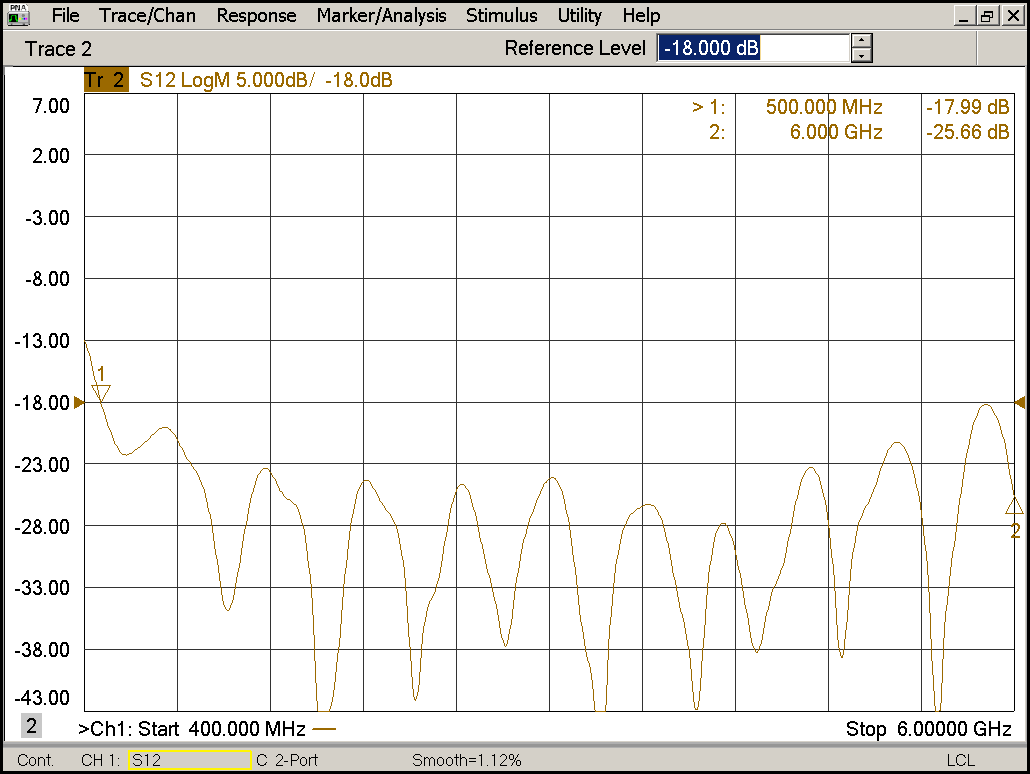

Leader-mw Test Data
