LPD-2/18-2S Two way power divider splitter

ype No:LPD-2/18-2S                                                             Frequency:2-18Ghz

Insertion Loss:0.7dB                                                             Amplitude Balance:±0.3dB

Phase Balance: ±3                                                                 VSWR: 1.4

Isolation:18dB                                                                       Connecter:SMA-F






Product Detail

Product Tags

Leader-mw Introduction to two way power didiver

Introducing the LPD-2/18-2S two-way power splitter launched by Chengdu Leader microwave Technology Co., Ltd. This incredible device provides innovative solutions to power distribution needs in a variety of applications. The power divider features ultra-low loss, high isolation, and ultra-wideband microstrip design to ensure superior performance and reliability.

One of the outstanding features of the LPD-2/18-2S power divider is its ultra-low loss characteristics. This means it has minimal signal loss, allowing it to distribute power efficiently without affecting signal quality. Whether you work in telecommunications, aerospace, or any other industry that relies on precise and reliable power distribution, this power divider will exceed your expectations.

In addition, the LPD-2/18-2S power divider provides high isolation, ensuring that input signals remain independent and do not affect each other. This high degree of isolation is critical for applications where signal interference or crosstalk can adversely affect system performance. Rest assured, with the LPD-2/18-2S Power Divider, each output signal will remain clean and isolated, providing superior results.

Leader-mw specification
No. Parameter Minimum Typical Maximum Units
1 Frequency range

2

-

18

GHz

2 Insertion Loss

-

-

0.7

dB

3 Phase Balance:

-

±3

dB

4 Amplitude Balance

-

±0.4

dB

5 VSWR

-

1.4(Input)

-

6 Power

10w

W cw

7 Operating Temperature Range

-30

-

+60

˚C

8 Impedance

-

50

-

Ω

9 Connecter

SMA-F

10 Preferred finish

SLIVER/Black/yellow/bluee/green





Remarks:

1、Not Include Theoretical loss 3db  2.Power rating is for load vswr better than 1.20:1

Leader-mw Environmental Specifications
Operational Temperature -30ºC~+60ºC
Storage Temperature -50ºC~+85ºC
Vibration 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis
Humidity 100% RH at 35ºc, 95%RH at 40ºc
Shock 20G for 11msec half sine wave,3 axis both directions
Leader-mw Mechanical Specifications
Housing Aluminum
Connector ternary alloy three-partalloy
Female Contact: gold plated beryllium bronze
Rohs compliant
Weight 0.10kg

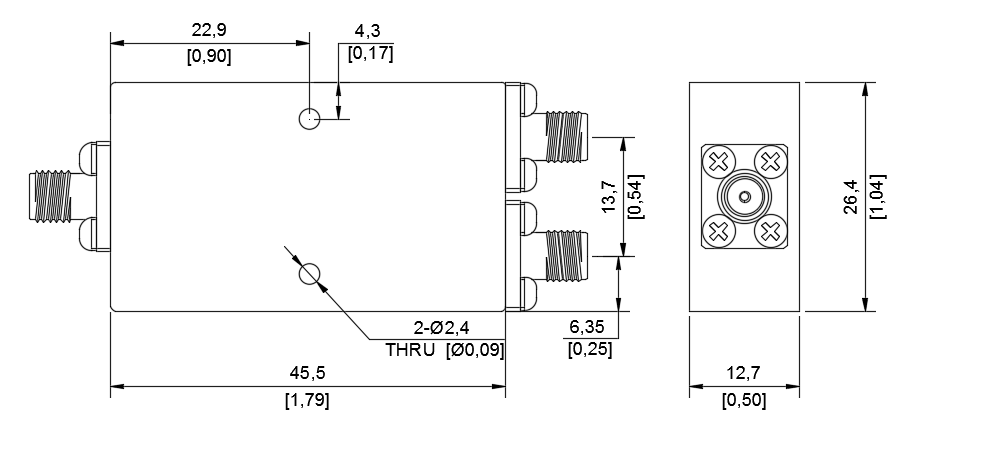

Outline Drawing:

All Dimensions in mm

Outline Tolerances ± 0.5(0.02)

Mounting Holes Tolerances ±0.2(0.008)

All Connectors: SMA-Female

2-18-2
Leader-mw Test Data
1.2
1.1
