LSJ-DC/26.5-100W-SMA DC-26.5Ghz 100w power attenuator
| Leader-mw | Introduction LSJ-DC/26.5-100W-SMA DC-26.5Ghz 100w power attenuator |
The coaxial fixed attenuator is suitable for any situation where the power level needs to be reduced or circuit matching. It can quantitatively absorb the energy in the transmission line, expand the power range, control the power level, and can be equipped with a small power meter, comprehensive tester or spectrum analyzer to accurately measure the power or spectrum of various rf microwave transmitters. LSJ-DC/26.5-100W-SMA series coaxial fixed attenuators have an average power of 100W and a frequency range of DC~26.5GHz. It has the following characteristics: small size, wide working frequency band, low standing wave coefficient, flat attenuation value, anti-pulse, anti-burn ability
| Leader-mw | Specification |
| Item | Specification | |
| Frequency range | DC ~ 26.5GHz | |
| Impedance (Nominal) | 50Ω | |
| Power rating | 100 Watt @25℃ | |
| Peak Power(5 μs) | 5 KW | |
| Attenuation | 20-40 | |
| V.S.W.R (Max) | 1.4: 1 | |
| Connector type | SMA male(Input) – female(Output) | |
| dimension | 165*90mm | |
| Temperature Range | -55℃~ 85℃ | |
| Weight | 0.5 Kg |
Remarks:
1、Not Include Theoretical loss 6db 2.Power rating is for load vswr better than 1.20:1
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | Aluminum blacken anodize |
| Connector | Passivated stainless steel |
|
Female Contact: |
gold plated beryllium brass |
| Male contact | Brass,Gold plated |
| Rohs | compliant |
| Weight | 0.5kg |

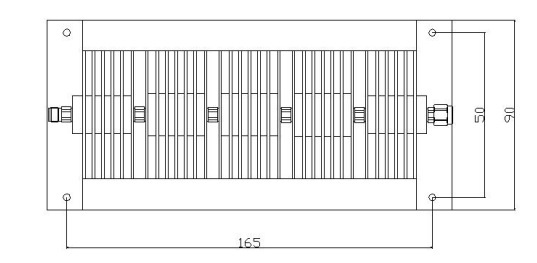

Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA
