PIN Coaxial Switch
| Leader-mw | Introduction to Switch |
Introducing Leader microwave Tech.,(LEADER-MW) PIN coaxial absorptive and reflective 50 ohm switch, a cutting-edge solution for high frequency signal routing and control. This innovative switch delivers superior performance and versatility, making it ideal for a wide range of applications in the telecommunications, aerospace, defense and research industries.
Designed to meet the needs of modern RF and microwave systems, PIN coaxial absorptive and reflective 50 ohm switches switch seamlessly between absorptive and reflective modes, giving users the flexibility to adapt to different signal routing requirements. The switch has a 50 ohm impedance to ensure optimal signal integrity and minimal signal loss, making it suitable for high frequency applications where accuracy and reliability are critical.
The switch’s compact and rugged coaxial design allows for easy integration into existing systems, while its high-speed switching capabilities enable fast response times, ensuring seamless signal routing and control. Whether used in test and measurement setups, communications systems, or radar applications, this switch delivers exceptional performance and reliability, making it a valuable asset to engineers and researchers.
| Leader-mw | Specification |
SP1T Switch Specification
| Frequency Range GHz | Reflective insertion loss dB(max) | Absorptive insertion loss dB(max) | VSWR(max) | Isolation dB(min) | Switching Speed ns(max) | Power W(max) |
| 0.02-0.5 | 0.2 | 0.3 | 1.3 | 80 | 200 | 1 |
| 0.5-2 | 0.4 | 0.5 | 1.3 | 80 | 100 | 1 |
| 0.02-3 | 2 | 2.2 | 1.5 | 80 | 200 | 1 |
| 1-2 | 0.5 | 0.6 | 1.3 | 80 | 100 | 1 |
| 2-8 | 0.8 | 1 | 1.3 | 80 | 100 | 1 |
| 8-12 | 1.2 | 1.5 | 1.4 | 80 | 100 | 1 |
| 12-18 | 1.6 | 2.6 | 1.5 | 80 | 100 | 1 |
| 2-18 | 2 | 2.8 | 1.8 | 60 | 100 | 1 |
| 18-26.5 | 2.4 | 3.2 | 1.8 | 60 | 100 | 2 |
| 26.5-40 | 3 | 4 | 2 | 30 | 100 | 0.2 |
| 40-50 | 3.5 | 4.5 | 2 | 30 | 100 | 0.2 |
SP4T Switch Specification
| Frequency Range GHz | Reflective insertion loss dB(max) | Absorptive insertion loss dB(max) | VSWR(max) | Isolation dB(min) | Switching Speed ns(max) | Power W(max) |
| 0.02-0.5 | 0.3 | 0.4 | 1.3 | 80 | 200 | 1 |
| 0.5-2 | 0.5 | 0.6 | 1.3 | 80 | 100 | 1 |
| 0.02-3 | 2.2 | 2.4 | 1.5 | 80 | 200 | 1 |
| 1-2 | 0.6 | 0.7 | 1.3 | 80 | 100 | 1 |
| 2-8 | 1 | 1.2 | 1.3 | 80 | 100 | 1 |
| 8-12 | 1.5 | 1.8 | 1.4 | 80 | 100 | 1 |
| 12-18 | 1.8 | 2.7 | 1.5 | 80 | 100 | 1 |
| 2-18 | 2.2 | 2.8 | 1.8 | 60 | 100 | 1 |
| 18-26.5 | 2.6 | 3.5 | 1.8 | 60 | 100 | 2 |
| 26.5-40 | 3.2 | 4.2 | 2 | 30 | 100 | 0.2 |
| 40-50 | 3.6 | 4.8 | 2 | 30 | 100 | 0.2 |
| Frequency Range GHz | Reflective insertion loss dB(max) | Absorptive insertion loss dB(max) | VSWR(max) | Isolation dB(min) | Switching Speed ns(max) | Power W(max) |
| 0.02-0.5 | 0.3 | 0.5 | 1.3 | 80 | 200 | 1 |
| 0.5-2 | 0.6 | 0.7 | 1.3 | 80 | 100 | 1 |
| 0.02-3 | 2.3 | 2.5 | 1.5 | 80 | 200 | 1 |
| 1-2 | 0.7 | 0.8 | 1.3 | 80 | 100 | 1 |
| 2-8 | 1.1 | 1.5 | 1.3 | 80 | 100 | 1 |
| 8-12 | 1.6 | 2 | 1.4 | 80 | 100 | 1 |
| 12-18 | 1.9 | 2.9 | 1.5 | 80 | 100 | 1 |
| 2-18 | 2.4 | 3 | 1.8 | 60 | 100 | 1 |
| 18-26.5 | 2.8 | 3.6 | 1.8 | 60 | 100 | 2 |
| 26.5-40 | 3.5 | 4.3 | 2 | 30 | 100 | 0.2 |
| 40-50 | 3.8 | 4.9 | 2 | 30 | 100 | 0.2 |
SP8T Switch Specification
| Frequency Range GHz | Reflective insertion loss dB(max) | Absorptive insertion loss dB(max) | VSWR(max) | Isolation dB(min) | Switching Speed ns(max) | Power W(max) |
| 0.02-0.5 | 0.4 | 0.5 | 1.3 | 80 | 200 | 1 |
| 0.5-2 | 0.8 | 0.8 | 1.3 | 80 | 100 | 1 |
| 0.02-3 | 2.5 | 2.7 | 1.5 | 80 | 200 | 1 |
| 1-2 | 0.8 | 1 | 1.3 | 80 | 100 | 1 |
| 2-8 | 1.5 | 1.8 | 1.3 | 80 | 100 | 1 |
| 8-12 | 2.5 | 3 | 1.4 | 80 | 100 | 1 |
| 12-18 | 5.2 | 5.5 | 1.5 | 80 | 100 | 1 |
| 2-18 | 5.5 | 6 | 1.8 | 60 | 100 | 1 |
| 18-26.5 | 6 | 6.5 | 1.8 | 60 | 100 | 2 |
| 26.5-40 | 6 | 6.5 | 2 | 30 | 100 | 0.2 |
| 40-50 | 6.2 | 6.7 | 2 | 30 | 100 | 0.2 |

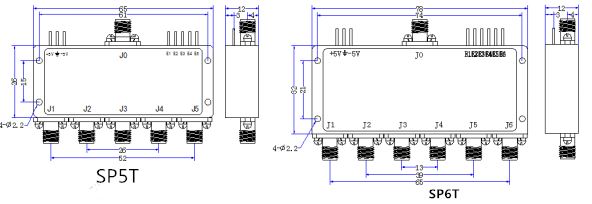

| Leader-mw | outdrawing |
All Dimensions in mm
All Connectors:SMA-F
Tolerance ：±0.3MM
