RF Adjustable Attenuator Rotary drum type DC-18Ghz
| Leader-mw | Introduction RF Adjustable Attenuator Rotary Drum Type DC-18Ghz |
The RF Adjustable Attenuator Rotary Drum Type DC-18GHz with N-f Connector is a versatile and essential tool for any microwave engineer or technician. This device allows for the precise control of signal levels over a wide frequency range, making it ideal for a variety of applications including antenna testing, system tuning, and more.
The rotary drum design provides smooth and accurate attenuation adjustments, allowing users to fine-tune their signals with ease. The unit's compact size and rugged construction make it suitable for use in both laboratory and field environments.
The N-f connector ensures compatibility with a wide range of equipment, making this attenuator an excellent addition to any microwave toolkit. Whether you're working on telecommunications systems, radar technology, or any other application that requires precise signal control, the RF Adjustable Attenuator Rotary Drum Type DC-18GHz with N-f Connector is an essential piece of equipment that will help you get the job done right.
| Leader-mw | specifications |
|
Number |
Frequency (GHz) |
Attenuation Range dB |
VSWR |
Insertion loss (dB) |
Attenuation Tolerance (dB) |
|
LKTS2-2-69-8-A7-B |
DC-8 |
0-696KTSX-1-80dB in 1dB steps |
1.50 |
≤1.25 |
±0.5dB (1~9Db DC-8G)
|
|
LKTS2-2-69-12.4-A7-B |
DC-12.4 |
1.50 |
≤1.5 |
||
|
LKTS2-2-69-18-A7-B |
DC-18 |
1.75 |
≤1.5 |
||
|
LKTS2-2-69-26.5-A7-B |
DC-26.5 |
0-696KTSX-1-80dB in 1dB steps |
1.85 |
≤2.2 |
±1.5dB(1~9dB) ±1.75dB(10~19dB) ±2dB(20~49dB) ±2.5dB(50~69dB) |
Remarks:
Power rating is for load vswr better than 1.20:1
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | Aluminum， anodized |
| Connector | nickel plated brass |
|
Female Contact: |
gold plated beryllium brass |
| Male contact | Brass gilding |
| Rohs | compliant |
| Weight | 1 kg |
Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: N-Female

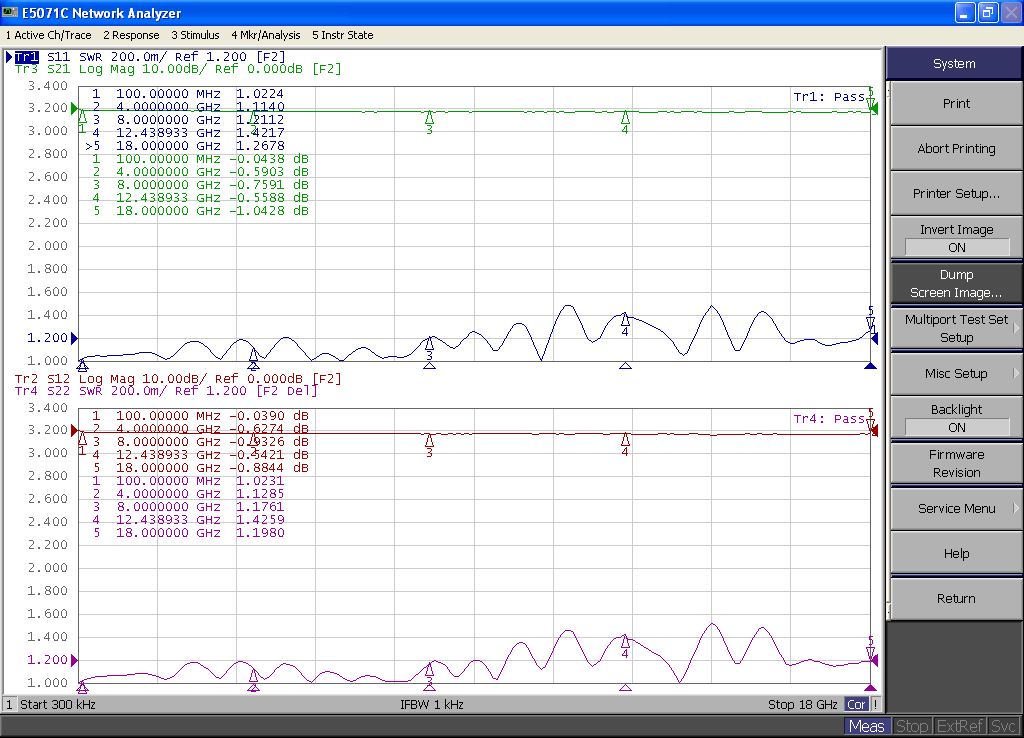

| Leader-mw | Test data |
