LSTF-5250/200 -2S RF Band Stop Trap Filter
| Leader-mw | Introduction to Band stop filter |
Chengdu leader microwave Tech.,(leader-mw) the Band Stop Trap Filter. This revolutionary product is designed to eliminate unwanted frequencies and interference in your audio and radio signals, ensuring a clean and clear sound experience every time.
The Band Stop Trap Filter is specifically engineered to target and suppress a specific frequency band, allowing only the desired signals to pass through. It effectively "traps" the unwanted frequencies, preventing them from interfering with your audio or radio transmissions.
This filter is perfect for use in professional audio setups, radio broadcasting, and live performances, where crystal-clear sound quality is crucial. Whether you're a musician, audio engineer, or radio broadcaster, our Band Stop Trap Filter will provide you with the reliable performance and uncompromised sound clarity you need.
One of the key features of our Band Stop Trap Filter is its adjustable frequency range, allowing you to easily customize the filter to meet your specific needs. This versatility makes it a valuable tool for a wide range of applications, from small home studios to large commercial radio stations.
| Leader-mw | Specification |
| Part No: | LSTF-5250/200 -1 |
| Stop band range: | 5150-5350Mhz |
| Insertion Loss in pass band: | ≤4.0dB |
| VSWR: | ≤2:1 |
| Stop Band attenuation: | ≥45dB |
| Band Pass: | DC-5125MHz@5375-11500MHz |
| Max.Power: | 10w |
| Connectors: | SMA-Female（50Ω） |
| Surface Finish: | Black |
Remarks:
Power rating is for load vswr better than 1.20:1
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Housing | Aluminum |
| Connector | ternary alloy three-partalloy |
| Female Contact: | gold plated beryllium bronze |
| Rohs | compliant |
| Weight | 0.6kg |
Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: SMA-Female
| Leader-mw | Test data |
| Leader-mw | Application |

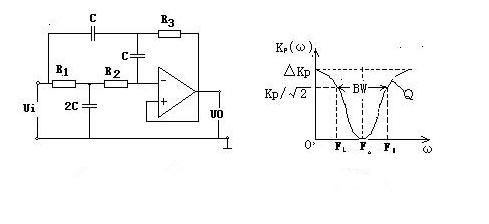

•Rf band stop filter allow you to use a common distributor system for all mobile communication applications in the broad frequency range.
•In the circuit and high frequency electronic system has better frequency selective filtering effect, band stop filter can suppress useless out of band signals and noise.In the aviation, aerospace, radar, communication, electronic countermeasure, radio and television and various applications in electronic test equipment
•Meet various demands of network systems with the Ultra-wideband design.
•Rf band stop filter Suitable for the coverage e indoor system of cellular mobile communication
