ANT0149 ultra wideband omni directional antenna
| Leader-mw | Introduction to Ultra Wideband Omni Directional Antenna |
Introducing Chengdu Leader microwave Tech., (leader-mw) ANT0149 2GHz ~ 40GHz ultra-wide omnidirectional antenna - your high-speed wireless communication solution. This cutting-edge antenna is designed to meet modern communication needs and provides a frequency band width of 2GHz ~ 40GHz. This means it can easily transmit high-speed data, video streaming, and other big data, making it ideal for a variety of communication needs.
One of the outstanding features of this antenna is its omnidirectional capability, allowing it to send and receive signals in all directions. This means no matter where your communication needs lie, this antenna can meet your needs. Whether you're building a network in a busy urban environment or a remote rural location, the ANT0149 is up to the task.
Due to its wide bandwidth, the antenna is able to communicate in different frequency bands, making it a versatile and adaptable option for a variety of application scenarios. From industrial environments to consumer electronics, this antenna has the flexibility to meet a variety of needs. Whether you want to enhance your current communications infrastructure or explore new possibilities for wireless connectivity, this antenna is a reliable and effective choice.
| Leader-mw | Specification |
| Frequency Range: | 2-40GHz |
| Gain, Typ: | ≥0dbi（TYP.） |
| Max. deviation from circularity | ±1.5dB（TYP.） |
| Polarization: | vertical polarization |
| VSWR: | ≤ 2.0: 1 |
| Impedance: | 50 OHMS |
| Port Connectors: | 2.92-50K |
| Operating Temperature Range: | -40˚C-- +85 ˚C |
| weight | 0.5kg |
| Surface Color: | Green |
| Outline: | φ140×59mm |
Remarks:
Power rating is for load vswr better than 1.20:1
| Leader-mw | Environmental Specifications |
| Operational Temperature | -30ºC~+60ºC |
| Storage Temperature | -50ºC~+85ºC |
| Vibration | 25gRMS (15 degrees 2KHz) endurance, 1 hour per axis |
| Humidity | 100% RH at 35ºc, 95%RH at 40ºc |
| Shock | 20G for 11msec half sine wave,3 axis both directions |
| Leader-mw | Mechanical Specifications |
| Item | materials | surface |
| Upper antenna cone | Red copper | passivation |
| Antenna base plate | 5A06 rust-proof aluminum | Color conductive oxidation |
| antenna housing | Honeycomb laminated fiberglass | |
| fixed part | PMI foam | |
| Rohs | compliant | |
| Weight | 0.5kg | |
| Packing | Carton packing case (can be customized) | |
Outline Drawing:
All Dimensions in mm
Outline Tolerances ± 0.5(0.02)
Mounting Holes Tolerances ±0.2(0.008)
All Connectors: 2.92-Female

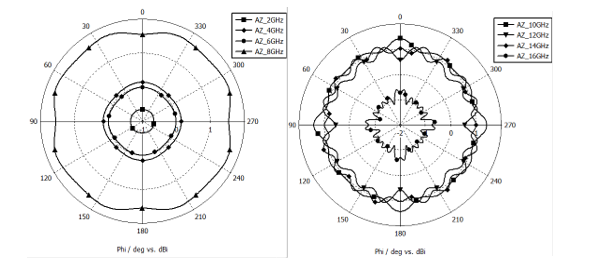

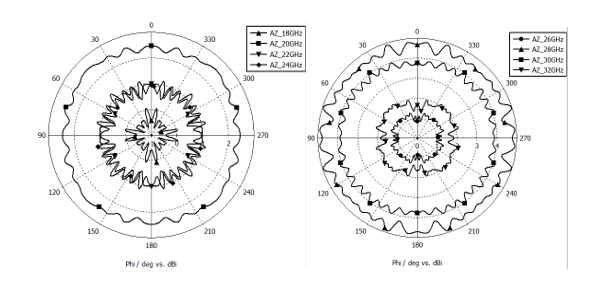

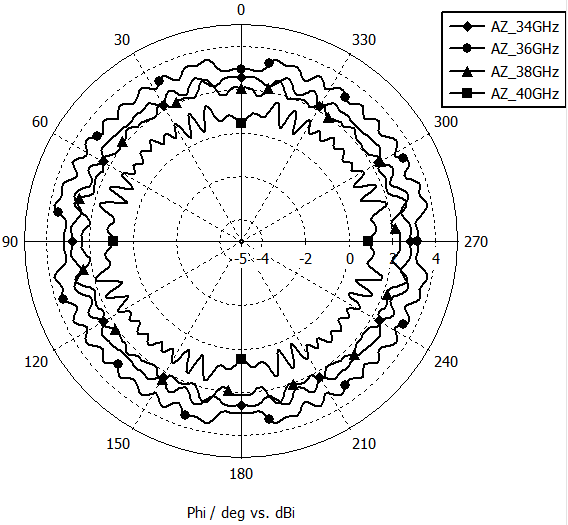

| Leader-mw | Test Data |
| Leader-mw | Characteristics of ultra wideband omni directional antenna: |
Ultra-wideband frequency range: It can be used in a large frequency range, the general frequency range is 1-18ghz.2. Omnidirectional antenna: its radiation direction performance is very uniform, can transmit and receive signals in all directions, no need to readjust the direction.3. High gain: Its gain is high, usually between 6-10 dBi.4. Short arm length: the short arm of the antenna is shorter, while the long arm is longer, which can be used for receiving and transmitting signals of different frequencies.5. High impedance matching: The electrical characteristics of the antenna match the standard 50 ohm impedance and can be directly connected to existing equipment or systems.6. Flat design: As the name suggests, the antenna is designed to be very flat for easy installation and layout.7. High-speed data transmission: Antennas provide high-speed data transmission, making them very popular in high-speed communications and radar applications.8. Miniaturization: The miniaturization of antennas can be easily integrated into existing equipment, making them widely used in aviation, satellite, mobile communications and military applications.
Application fields of omni directional antenna:
Ultra-wide band omnidirectional antenna is usually made by microstrip line technology. Because this technology has the advantages of simple manufacture, stable structure and low cost, it has been widely popularized and applied in production and application. It can be used for indoor and outdoor wireless communication systems, such as WiFi, Bluetooth, Zigbee, etc. In addition, it can also be used in radar, medical, geological exploration and other fields
